Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with Dual M.2, Gigabit LAN and on-board WiFi, USB 3.1 Gen2, and Intel® Optane™ Memory compatibility
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Â
Fan Xpert 4 Core provides advanced fan and liquid cooling controls for dynamic system cooling and management
Â
Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Â
18 month Warranty for guaranteed reliability built on military-grade engineering
specs
General
Chipset Type
Intel H370
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Manufacturer
Asus
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -connectors: 1 x M.2
PCIe 3.0 -connectors: 1 x M.2
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header
1 x serial - header
1 x SPDIF out - header
1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
RAID Features
Intel Rapid Storage Technology
Processor
Max Supported Qty
1
Installed Qty
0
Interface Provided
Qty
1, 2
Type
DisplayPort, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, USB 2.0, USB 3.1 Gen 1, USB-C Gen1, VGA, audio line-in, audio line-out, microphone
Connector Type
mini-jack
Networking
Data Link Protocol
Bluetooth 5.0, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Controller
Intel I219V / Intel Wireless-AC 9560
Network
802.11a/b/g/n/ac, Bluetooth, Gigabit Ethernet
Processor / Memory / Storage
Max Supported Qty
1
Memory
Max Allocated RAM Size
1 GB
Miscellaneous
Product Type
motherboard
Included Accessories
1 x M.2 screw, ASUS 2T2R Wi-Fi moving antennas, CPU installation tool, I/O back cover, TUF stickers
Audio
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio, DTS Custom
Video
Video Output
graphics adapter (CPU required)
Graphics
Max Allocated RAM Size
1 GB
Audio Output
Compliant Standards
DTS Custom, High Definition Audio
Type
sound card
Audio Codec
Realtek ALC887
Audio
High Definition Audio (8-channel)
RAM
Max Supported Size
64 GB
Features
Intel Extreme Memory Profiles (XMP), dual channel memory architecture
LAN
Network Interfaces
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Network Controller
Intel I219V / Intel Wireless-AC 9560
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size
64 GB
Technology
DDR4
Supported RAM Integrity Check
Non-ECC
Header
Brand
ASUS
Product Line
ASUS
Model

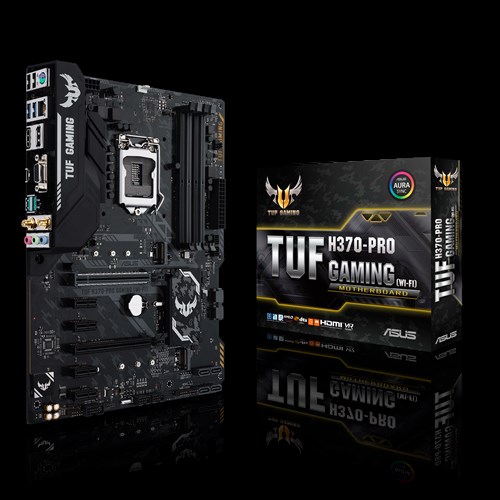

TUF H370-PRO GAMING (WI-FI)
Packaged Quantity
1
Mainboard
Form Factor
ATX
Processor Socket
LGA1151 Socket
Compatible Processors
Celeron, Core i3, Core i5, Core i7, Pentium
Compatible Processors Comments
supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron
Chipset Type
Intel H370
Supported RAM Technology
DDR4 SDRAM
Supported RAM Speed
2133 MHz, 2400 MHz, 2666 MHz
Supported RAM Integrity Check
non-ECC
Supported RAM (Registered or Buffered)
unbuffered
RAM Slots
4 DIMM slots
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Mainboard Features
BIOS Type
AMI
BIOS Features
ACPI 6.1 support, ASUS EZ Flash 3, ASUS Quiet Thermal Solution, DMI 3.0 support, Multilingual BIOS, SMBIOS 3.1 support, UEFI BIOS, WfM 2.0 support
Sleep / Wake Up
wake on LAN (WOL), wake on PME
Hardware Features
4+2+1 Phase Power Design, AMD CrossFireX technology support, ASUS DIGI+ VRM, ASUS EPU (Energy Processing Unit), ASUS EZ DIY, ASUS Fan Xpert 4 Core, ASUS OptiMem, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, AURA RGB Lighting Control, CrashFree BIOS 3, ESD Guards, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Optane Memory Ready, Intel Quick Sync Video, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), Q-DIMM, Q-LED, Q-Slot, TUF Components, TUF Engine!, TUF LANGuard, audio jack detect technology, jack retasking
Interfaces
Storage
M.2 socket, Serial ATA-600 (RAID)
Storage Ports
6 x SATA-600 (RAID), 2 x M.2
RAID Features
Intel Rapid Storage Technology
USB 3.0 / FireWire
USB 3.1 Gen 1, USB-C Gen1
USB / FireWire Ports Configuration (Active)
1 x USB-C Gen 1 + 2 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0
Cable Details
Type
Serial ATA cable
Included Qty
2
Expansion Slots
Total Qty
1, 4
Slot Comments
x4 mode
Type
CPU, DIMM 288-pin, PCIe 3.0 x1, PCIe 3.0 x16
Dimensions & Weight
Width
12 in
Depth
9.6 in
Software
Software Included
ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, ASUS EZ Update, Antivirus (OEM version), drivers & utilities
Video Memory
Max Allocated RAM Size
1 GB
Storage Interfaces
Interface
PCIe 3.0, Serial ATA-600, Serial ATA-600 / PCIe 3.0
Connector(s)
1 x M.2, 6 x 7pin Serial ATA
RAID (Level)
RAID 0 / RAID 1 / RAID 10 / RAID 5
Internal Interfaces
Type
SPDIF out, USB 2.0, USB 3.1 Gen 1, audio, serial
Connector Type
header
Qty
1, 2, 4
Features
BIOS Type
AMI
BIOS Features
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, AMD CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF LANGuard, ASUS Overvoltage Protection, TUF Components, AURA RGB Lighting Control, ASUS SafeSlot, Intel Optane Memory Ready, ASUS Fan Xpert 4 Core, ASUS OptiMem, 4+2+1 Phase Power Design, ASUS TUF Protection
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
General
Manufacturer
Asus
