Brand |
ASUS |
Model |

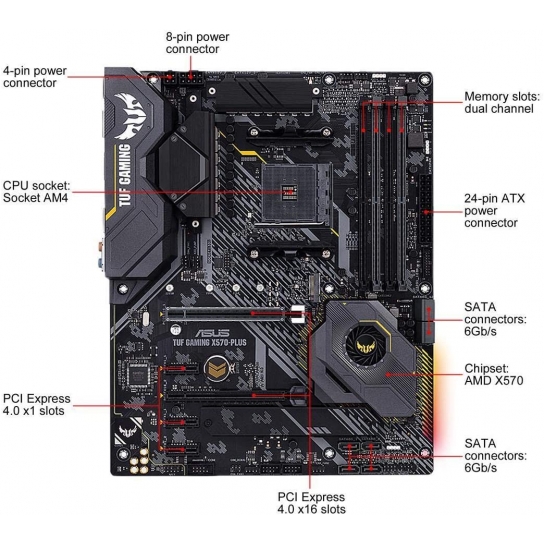

TUF GAMING X570-PLUS |
CPU |
AMD AM4 Socket AMD RyzenTMÂ 5000 Series Processors/AMD RyzenTMÂ 4000 G-Series Processors/AMD RyzenTMÂ 3000 Series Processors/AMD RyzenTMÂ 2000 Series Processors/AMD RyzenTMÂ 3000 G-Series Processors/AMD RyzenTMÂ 2000 G-Series Processors Processors |
Chipset |
AMD X570 |
Memory |
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
Graphic |
Integrated Graphics in AMD Ryzenâ„¢ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors |
Multi-GPU Support |
Supports AMD CrossFireXâ„¢ Technology |
Expansion Slots | AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD RyzenTM 4000 G-Series / 2000 Series Processors 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
Storage | AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
Bluetooth | Bluetooth V4.2 |
Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure the best quality. |
USB Ports | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C®) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
Internal I/O Ports | 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WOL by PME, PXE |
Form Factor | ATX Form Factor 12.0Â inch x 9.6Â inch ( 30.5Â cm x 24.4Â cm ) |
