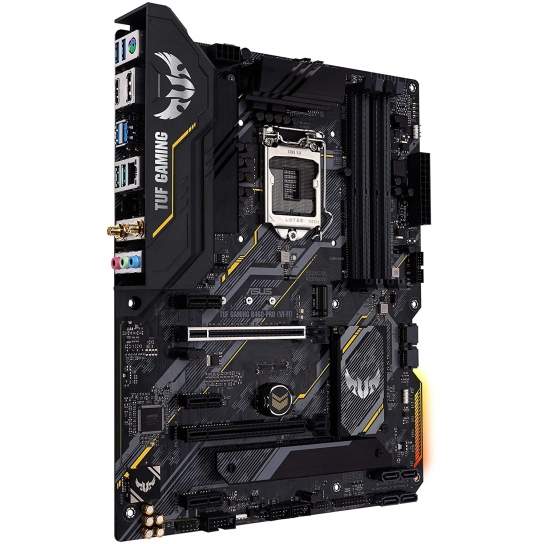

TUF Gaming B460-PRO (WiFi) distills essential elements of the latest IntelĀ® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
Specifications:
Brand | ASUS |
---|---|
Model | TUF GAMING B460-PRO (WI-FI) |
CPU Socket TypeĀ | LGA 1200 |
---|---|
CPU Type | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors * * Refer to www.asus.com for CPU support list |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
ChipsetĀ | Intel B460 |
---|
Onboard Video ChipsetĀ | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. |
---|
Number of Memory Slots | 4Ć288pin |
---|---|
Memory Standard | DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Maximum Memory Supported | 128GB |
Channel SupportedĀ | Dual-Channel |
PCI Express 3.0 x16 | Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) *1 * By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2, or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode. |
---|---|
PCI Express x1 | 3 x PCIe 3.0 x1 * * By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2, or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode. |
SATA 6Gb/sĀ | 6 x SATA 6Gb/s |
---|---|
M.2 | Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x4 mode) * M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. |
Intel Optane Ready | Intel Optane Memory Ready * * Only the M.2_2 socket can support Intel Optane Memory Ready. |
SATA RAID | 0/1/5/10 |
Audio ChipsetĀ | Realtek ALC S1200A |
---|---|
Audio ChannelsĀ | 8 Channels * Choose the chassis with an HD audio module in the front panel to support 8-channel audio output. |
LAN Chipset | Intel I219-V |
---|---|
Max LAN Speed | 10/100/1000Mbps |
Wireless LAN | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface |
Bluetooth | Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later. |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module |
---|
Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
---|---|
Other Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors |
Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ASUS Exclusive Software Armory Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility Digi+ VRM EPU Fan Xpert 4 - EZ update - PC Cleaner - System Information AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) DAEMON Tools Google Chrome Browser & Google Toolbar TUF GAMING CPU-Z WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design : - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution: - Aluminum M.2 heatsink - Aluminum heatsink design ASUS EZ DIY - Box Headers AURA Sync - Addressable Gen 2 RGB header - Standard RGB headers BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit |
---|
