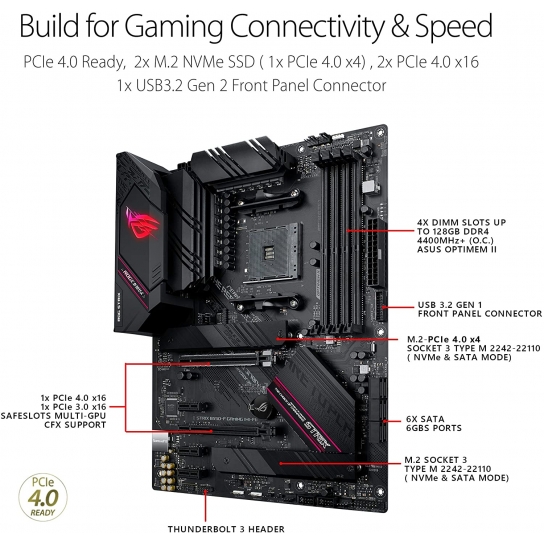

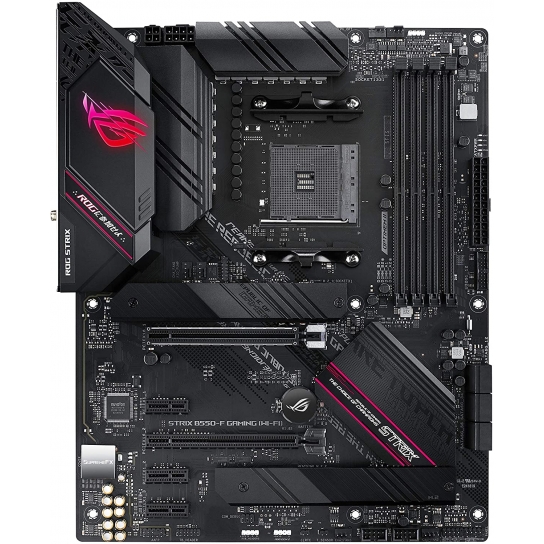

Combining a high-end feature set and futuristic aesthetics, the ASUS ROG Strix B550-F Gaming Motherboard (Wi-Fi) is custom-built for performance gaming. This ASUS motherboard is compatible with 3rd Gen AMD Ryzen CPUs, offering world-class desktop speeds to gamers, with support for dual-channel DDR4 memory up to 128 GB. Two M.2 slots, including the latest PCIe 4.0, utilize the 3rd Gen AMD Ryzen platform to provide maximum storage flexibility and the fastest data speeds available, with both M.2 slots supporting up to the type 22110 socket and NVM Express RAID to deliver a boost in performance. Onboard 2.5 Gb Ethernet delivers speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming, while onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity, and better performance in dense wireless environments. The B550 motherboard is powered by 12+2 DrMOS power stages, with high-quality alloy chokes and durable capacitors to provide reliable power for the latest high-core-count AMD CPUs. The Fanless VRM and chipset heatsinks with ASUS Stack Cool 3+ design keep your system running reliably under heavy loads by enhancing passive cooling capacity for critical onboard components. Cyberpunk-inspired aesthetics including the distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud make this AMD Ryzen motherboard a striking centerpiece for your dream build.
AMD AM4 Socket for 3rd Gen AMD Ryzenâ„¢ and 3rd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics Processors
AMD B550
3rd Gen AMD Ryzenâ„¢ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
Integrated Graphics Processor
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Supports AMD 2-Way CrossFireX Technology
3rd Gen AMD Ryzenâ„¢ Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzenâ„¢ Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCI-E 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCI-E 3.0 x 4 mode)*
Support Raid 0, 1, 10
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shieldingâ„¢ Technology
- Gold-plated jacks
- Optical S/PDIF in port(s) at back panel
- Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armory Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3:
- PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBackâ„¢ button
-BIOS FlashBackâ„¢ LED
-Clear CMOS header
-ProCool
-Pre-mounted I/O shield
- SafeSlot
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
User's manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
256 Mb Flash ROM, UEFI AMI BIOS
WOL by PME, PXE
Windows® 10 64-bit
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
