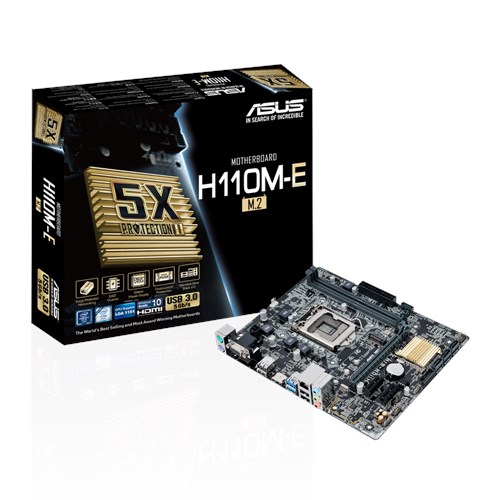

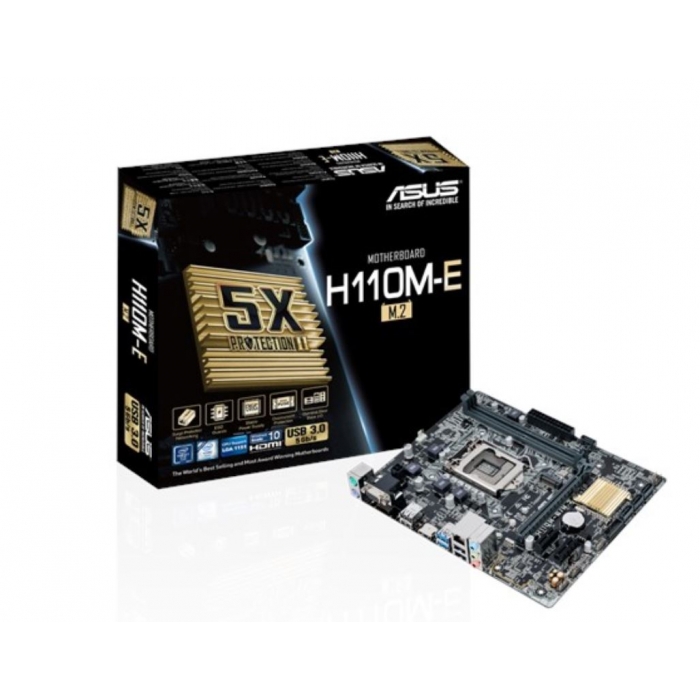

ASUS H110M-E/M.2 LGA1151 DDR4 M.2 HDMI USB3.0 H110 microATX Motherboard
Onboard M.2 Socket 3 for 2242/2260/2280 SSDs
5X Protection II – Advanced hardware safeguards for all-around protection
DDR4 memory compatibility
Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
Epic gaming audio with LED-illuminated shielding
18 month warrenty
specs
General
Chipset Type
Intel H110 Express
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Manufacturer
Asus
Expansion / Connectivity
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
Storage Interfaces
SATA-600 / PCIe 3.0 -connectors: 4 x 7pin SATA, 1 x M.2
Internal Interfaces
2 x USB 2.0 - header
2 x USB 3.0 - header
1 x audio - header
1 x SPDIF out - header
1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector
Processor
Max Supported Qty
1
Installed Qty
0
Interface Provided
Qty
1, 2, 4
Type
HDMI, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
Connector Type
mini-jack
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller
Realtek RTL8111H
Network
Gigabit Ethernet
Processor / Memory / Storage
Max Supported Qty
1
Memory
Max Allocated RAM Size
1024 MB
Miscellaneous
Compliant Standards
Plug and Play, ACPI 5.0
Product Type
motherboard
Included Accessories
I/O back plate
Audio
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
Video
Video Output
graphics adapter (CPU required)
Graphics
Max Allocated RAM Size
1024 MB
Audio Output
Compliant Standards
High Definition Audio
Type
sound card
Audio Codec
Realtek ALC887
Audio
High Definition Audio (8-channel)
RAM
Max Supported Size
32 GB
Features
Intel Extreme Memory Profiles (XMP)
LAN
Network Interfaces
Gigabit Ethernet
Network Controller
Realtek RTL8111H
Supported RAM
Bus Clock
2133 MHz
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP)
Max Size
32 GB
Technology
DDR4
Supported RAM Integrity Check
Non-ECC
Header
Brand
ASUS
Product Line
ASUS
Model
H110M-E/M.2
Packaged Quantity
1
Compatibility
PC
Mainboard
Form Factor
micro ATX
Processor Socket
LGA1151 Socket
Compatible Processors
Celeron, Core i3, Core i5, Core i7, Pentium
Compatible Processors Comments
supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron
Chipset Type
Intel H110 Express
Supported RAM Technology
DDR4 SDRAM
Supported RAM Speed
2133 MHz
Supported RAM Integrity Check
non-ECC
Supported RAM (Registered or Buffered)
unbuffered
RAM Slots
2 DIMM slots
Power Connectors
24-pin main power connector, 4-pin ATX12V connector
Mainboard Features
BIOS Type
AMI
BIOS Features
ACPI 5.0 support, ASUS EZ Flash 3, ASUS Quiet Thermal Solution, DMI 3.0 support, Multilingual BIOS, SMBIOS 3.0 support, UEFI BIOS, WfM 2.0 support
Sleep / Wake Up
wake on LAN (WOL), wake on PME
Hardware Features
ASUS 5X Protection II, ASUS DIGI+ VRM, ASUS EPU (Energy Processing Unit), ASUS EZ DIY, ASUS Enhanced DRAM Overcurrent Protection, ASUS Fan Xpert, ASUS Q-Design, ASUS Stainless Steel Back I/O, CrashFree BIOS 3, ESD Guards, Fanless Design Heatsink, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, LANGuard, Low EMI Solution, Preboot eXecution Environment (PXE), Q-DIMM, Q-Slot, USB 3.0 Boost, audio jack detect technology, jack retasking
Interfaces
Storage
M.2 socket, Serial ATA-600
Storage Ports
4 x SATA-600, 1 x M.2
USB 3.0 / FireWire
USB 3.0
USB / FireWire Ports Configuration (Active)
2 x USB 3.0 + 4 x USB 2.0
Cable Details
Type
Serial ATA cable
Included Qty
2
Expansion Slots
Total Qty
1, 2
Type
CPU, DIMM 288-pin, PCIe 2.0 x1, PCIe 3.0 x16
Dimensions & Weight
Width
8.9 in
Depth
7.3 in
Software
Software Included
ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, ASUS EZ Update, Antivirus (OEM version), Media Streamer, Mobo Connect, PC Cleaner, drivers & utilities
Video Memory
Max Allocated RAM Size
1024 MB
Storage Interfaces
Interface
Serial ATA-600 / PCIe 3.0
Connector(s)
4 x 7pin Serial ATA, 1 x M.2
Internal Interfaces
Type
SPDIF out, USB 2.0, USB 3.0, audio, serial
Connector Type
header
Qty
1, 2
Features
BIOS Type
AMI
BIOS Features
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Fanless Design Heatsink, USB 3.0 Boost, Low EMI Solution, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS 5X Protection II
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
General
Manufacturer
Asus
