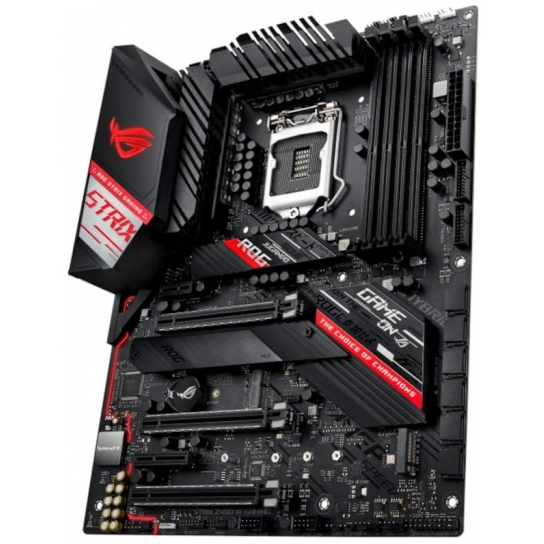

Take your gaming experience to the next level with the ASUS ROG Strix Z490-H Gaming LGA 1200 ATX Motherboard. Designed for gamers, enthusiasts, and content creators, this motherboard is powered by the Intel Z490 chipset and supports 10th generation Intel processors with the LGA 1200 socket. It takes full advantage of the PCIe 3.0 data bandwidth to deliver high performance for tasks such as video editing. Up to 128GB of dual-channel DDR4 RAM, reaching 4600 MHz when overclocked, can be installed across four memory slots. The ATX motherboard also features advanced cooling and supports up to two M.2 SSDs and six SATA III storage drives, which can be put into RAID 0, 1, 5, or 10 configurations and enhanced with Intel Optane technology. It's three PCIe 3.0 x16 slots support dedicated graphics cards and can accommodate a 2-Way AMD CrossFireX configuration to maximize frame rates, connect 4K monitors, and for faster video rendering times. Alternatively, the built-in DisplayPort and HDMI ports allow you to take advantage of integrated CPU graphics. One PCIe 3.0 x4 slot and one PCIe 3.0 x1 slot is available alongside a Thunderbolt 3 header for compatible expansion cards.
Brand | ASUS |
---|---|
Series | ROG |
Model | STRIX Z490-H GAMING |
CPU Socket Type | LGA 1200 |
---|---|
CPU Type | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel Z490 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DisplayPort 1.4 * 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
---|
Number of Memory Slots | 4×288pin |
---|---|
Memory Standard | DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Maximum Memory Supported | 128GB |
Channel Supported | Dual-Channel |
PCI Express 3.0 x16 | Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4) |
---|---|
PCI Express x4 | Intel Z490 Chipset 1 x PCIe 3.0 x4 (max at x2 mode) |
PCI Express x1 | 1 x PCIe 3.0 x1 |
Other Slots | M.2 slot only (Key E) (Support CNVI & PCIe interface)* * Wi-Fi module is sold separately. |
SATA 6Gb/s | 6 x SATA 6Gb/s |
---|---|
M.2 | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Audio Chipset | ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A |
---|---|
Audio Channels | 8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
LAN Chipset | Intel I225-V |
---|---|
Max LAN Speed | 10/100/1000/2500Mbps |
Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-C) 4 x USB 3.2 Gen 1 Type-A 1 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x Optical S/PDIF out 1 x USB BIOS FlashBack Button(s) 5 x Gold-plated audio jacks |
---|
Onboard USB | 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
---|---|
Other Connectors | 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x Thunderbolt header(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armory Crate - Aura Creator - Aura Sync AI Suite 3 -5-way Optimization with AI Overclocking. TPU EPU Digi+ VRM Fan Xpert 4 Turbo app -EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [ yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS Flashback button -BIOS FlashBackTM LED - Protocol II - Pre-mounted I/O shield - SafeSlot AURA Sync - 2 x Standard RGB headers - Addressable Gen 2 RGB header Onboard red LED lighting accent BIOS: 192(128+64)MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE |
---|
Package Contents | Accessories: User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 M.2 SSD screw package(s) 1 M.2 Key E screw package(s) 1 ROG key chain |
---|
