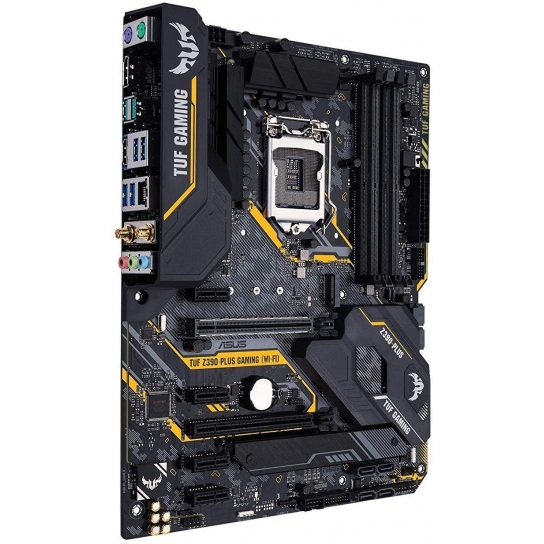

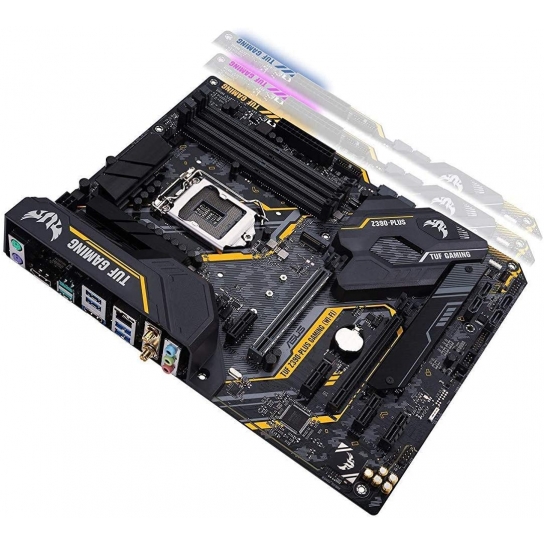

Asus TUF Z390-PLUS GAMING Intel Z390 ATX gaming motherboard with Aura Sync RGB LED lighting

Gaming Motherboard for Hardcore Gamers.

Code

: TUF Z390-PLUS GAMING

Manufacturer

Availability

: Out of Stock

Rs. 30000
Qty :

Powered exclusively by 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors, the TUF Z390-Plus Gaming Z390 LGA 1151 ATX Motherboard (Wi-Fi) from ASUS is designed and tested to survive and thrive where other boards would struggle. It offers a safe and user-friendly DIY build by leveraging its design, engineering, and military-grade components. This motherboard will fit in ATX sized cases, supports the LGA 1151 socket, the Intel Z390 chipset, and is compatible with Windows 10 (64-bit).

Specifications:

General

Chipset Intel Z390
CPU Socket LGA 1151

Back Panel I/O

USB 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt None
Display 1 x DisplayPort 1.2
1 x HDMI
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Intel I219V Gigabit
PS/2 2 x PS/2
Wi-Fi Antenna 2 x Connector

Memory

Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266 MHz
Maximum Capacity 64 GB
Channel Architecture Dual-Channel
ECC Support Non-ECC Unbuffered

Storage Expansion

SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10

Internal I/O

Expansion Slots 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
USB 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin Assistant
2 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
LED Header 2 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS

BIOS

ROM 128 Mb

Front Panel I/O

I/O Connection Headers AAFP

Audio

Audio Codec Realtek S1200A (8-Channel)

Software

Supported Operating Systems Windows 10 (64-Bit)

Physical

Form Factor ATX
Dimensions 12 x 9.6" / 30.48 x 24.38 cm
