m-ATX Form Factor
SPECIFICATIONS | |
Brand | MSI |
Series | Pro Series |

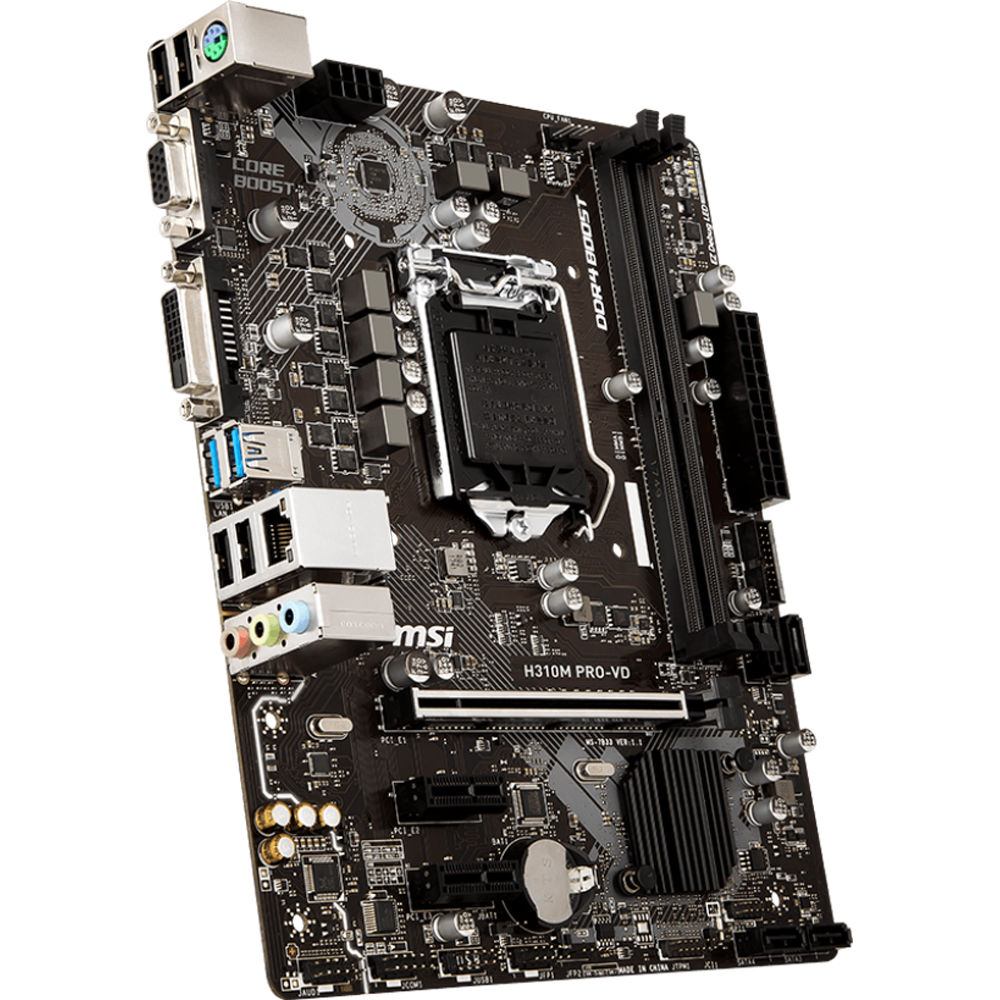

Model | H310M PRO-VD |
Processor | Supports 8th Gen Intel Core, Pentium Gold and Celeron Processors for Socket LGA1151 |
Chipset | Intel H310 Chipset |
Memory | 2x DDR4 Memory Slots, Support up to 32GB |
Supports DDR4 2666/ 2400/ 2133 MHz Memory | |
Dual Channel Memory Architecture | |
Supports Non-ECC, Un-Buffered Memory | |
Supports Intel Extreme Memory Profile (XMP) | |
Slots | 1x PCIe 3.0 x16 Slot |
2x PCIe 2.0 x1 Slots | |
Onboard Graphics | 1x VGA Port, Supports a Maximum Resolution of 2048 x 1536 @ 50 Hz, 2048 x 1280 @ 60 Hz, 1920 x 1200 @ 60 Hz |
1x DVI-D Port, Supports a Maximum Resolution of 1920 x 1200 @ 60 Hz | |
Storage | Intel H310 Chipset |
4x SATA 6Gb/s Ports | |
USB | Intel H310 Chipset |
4x USB 3.1 Gen1 (SuperSpeed USB) Ports (2 Type-A Ports @ Back Panel, 2 Ports Available Through the Internal USB Connector) | |
6x USB 2.0 (High-Speed USB) Ports (4 Type-A Ports @ Back Panel, 2 Ports Available Through the Internal USB Connectors) | |
Audio | Realtek ALC887 Codec |
7.1-Channel High Definition Audio | |
LAN | 1 x RTL8111H Gigabit LAN Controller |
Internal Connectors | 1x 24-pin ATX Main Power Connector |
1x 8-pin ATX 12V Power Connector | |
4x SATA 6Gb/s Connectors | |
1x USB 3.1 Gen1 Connector (Supports Additional 2 USB 3.1 Gen1 Ports) | |
1x USB 2.0 Connector (Supports Additional 2 USB 2.0 Ports) | |
1x 4-pin CPU Fan Connector | |
1x 4-pin System Fan Connector | |
2x Front Panel Connectors | |
1x Front Panel Audio Connector | |
1x Serial Port Connector | |
1x TPM Module Connector | |
1x Chassis Intrusion Connector | |
1x Clear CMOS Jumper | |
4x EZ Debug LED | |
Back Panel Ports | 1x PS/2 Combo Port |
1x VGA Port | |
1x DVI-D Port | |
1x LAN Port | |
2x USB 3.1 Gen1 | |
4x USB 2.0 Port | |
3x HD Audio Connectors | |
Form Factor | m-ATX Form Factor |
8.9" x 7.3" (226 x 185 mm) | |
Mounting Holes | 6 |
