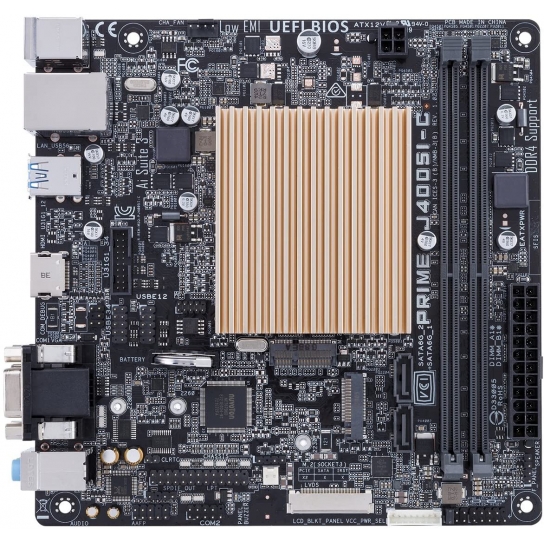

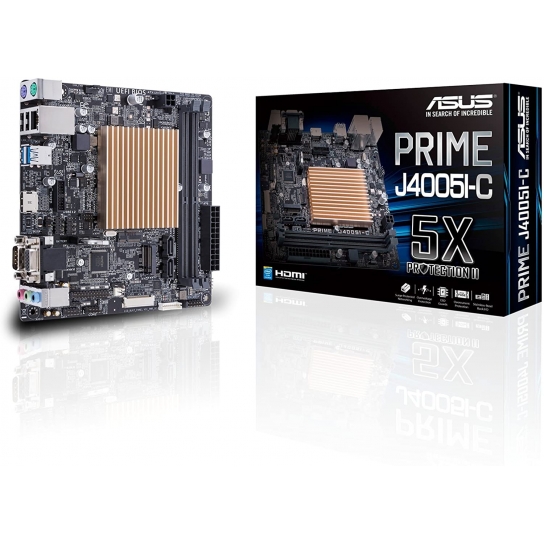

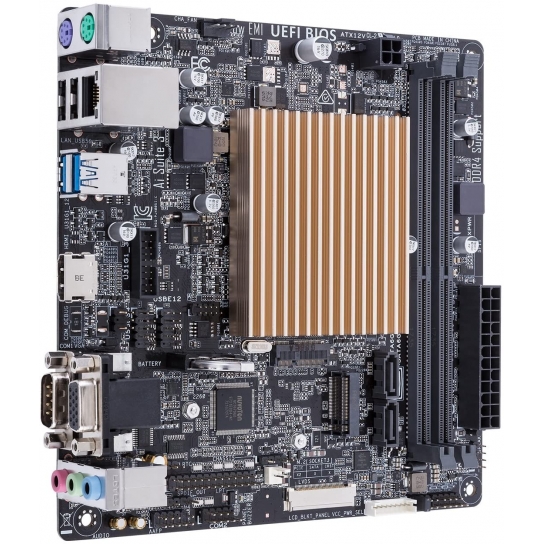

The ASUS Prime J4005I-C incorporates the Intel Celeron dual-core J4005 SoC onboard processor, which supports TDP 10W with best-in-class energy saving. The Prime J4005I-C offers a variety of connections, including dual M.2, HDMI, VGA, LVDS, USB 2.0 and 3.1 Gen1, and a COM header.
Brand |
ASUS |
Model |
PRIME J4005I-C |
CPU |
Intel® Celeron® Dual-Core J4005 SoC onboard Processors |
Memory |
2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1 |
Graphic |
Integrated Graphics Processor |
Storage | 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode) 2 x SATA 6Gb/s port(s), |
LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking |
USB Ports | Built-in Controller : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Built-in Controller : 2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub : 4 x USB port(s) (4 at mid-board) |
Internal I/O Ports | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x Panel off header 1 x LVDS connector(s) 1 x System panel connector 1 x Flat panel display brightness connector 1 x Display panel VCC power selector 1 x Speaker connector |
Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready |
Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
Support Disk | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
Form Factor | Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Note | *1 We recommend that you use 8GB or less memory modules. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output |
