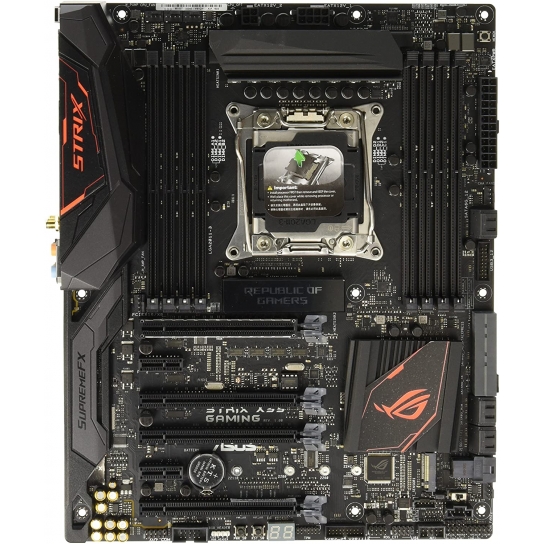

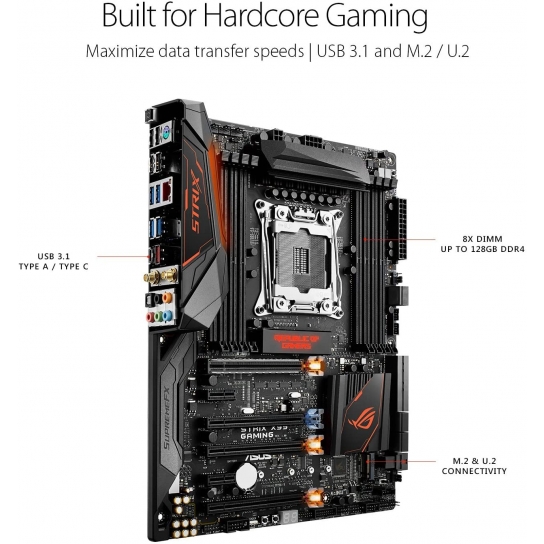

The ROG Strix X99 Gaming LGA 2011-v3 ATX Motherboard from Asus is an Intel X99-based board that utilizes the LGA 2011-v3 socket for Core i7 X-series CPUs. It has a total of eight DDR4 RAM slots for quad-channel support, supporting up to 128GB of RAM at speeds of up to 3333 MHz when overclocked. With plenty of PCIe slots, this board can support up to 3-way SLI or CrossFireX GPU setups for immense graphical processing power. For storage, it has one M.2 slot, one U.2 slot, eight SATA III ports, and one SATA Express port. Connect to the Internet via 802.11ac dual-band Wi-Fi or with the Intel Ethernet LAN port for a more stable and reliable wired connection. There's also plenty of USB ports, including USB 3.1 Type-A and Type-C ports for your peripherals. Built-in RGB LED lighting adds some flair to your system and can be customized using the Aura Lighting app.
CPU | Intel Socket 2011-v3 Core i7 X-Series Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel X99 |
Memory | 8 x DIMM, Max. 128GB, Non-ECC, Un-buffered Memory DDR4 3333(O.C.)/3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
Multi-GPU Support | Supports NVIDIA 2/3-Way SLI Technology Supports AMD 2/3-Way CrossFireX Technology |
LAN | Intel I218V Gigabit LAN Controller |
Wireless | 802.11a/b/g/n/ac Dual-Band Wi-Fi with MU-MIMO Support |
Bluetooth | Bluetooth 4.1 |
Audio | ROG SupremeFX 8-Channel High Definition Audio Codec |
Expansion Slots | 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x8/x16/x8 mode with 40-Lane CPU) (x16, x16/x8, x8/x8/x8 mode with 28-Lane CPU) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 |

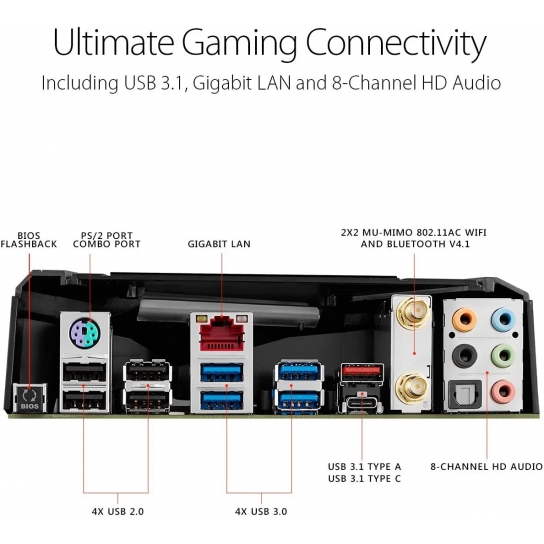

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port 1 x LAN (RJ45) port 1 x USB 3.1 Type-A (red) 1 x USB 3.1 USB Type-C (black) 4 x USB 3.0 Type-A (blue) 4 x USB 2.0 Type-A (one port can be switched to USB BIOS Flashback) 5 x Audio jack(s) 1 x USB BIOS Flashback Button 1 x ASUS Wi-Fi GO! module |
Internal I/O Ports | 1 x U.2 port 1 x AAFP connector 1 x Aura RGB Strip Header 2 x USB 3.0 Type-A (supports 4 additional USB 3.0 ports) 2 x USB 2.0 Type-A (supports 4 additional USB 2.0 ports) 1 x SATA Express connector (Compatible with 2 x SATA 6.0 Gb/s ports) 1 x M.2 Socket 3 with M Key design type 2242/2260/2280/22110 (Support PCI-E SSD only) 8 x SATA 6Gb/s connectors 1 x CPU Fan connector 1 x CPU OPT Fan connector 2 x Chassis Fan connectors 1 x Thunderbolt header 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 4-pin ATX 12V Power connector 1 x EZ XMP switch 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x DRCT header 1 x MemOK! button 1 x Thermal sensor connector 1 x CPU OV 1 x Power-on button 1 x Reset button 1 x Clear CMOS jumper 1 x Water Pump header (4-pin) 1 x ROG extension (ROG_EXT) header 1 x 14-1 pin TPM connector 1 x COM port header 1 x High AMP Fan header (4-pin) |
Form Factor | ATX |
Operating System Support | Windows 10 64-Bit Windows 8.1 32-/64-Bit Windows 7 32-/64-Bit |
