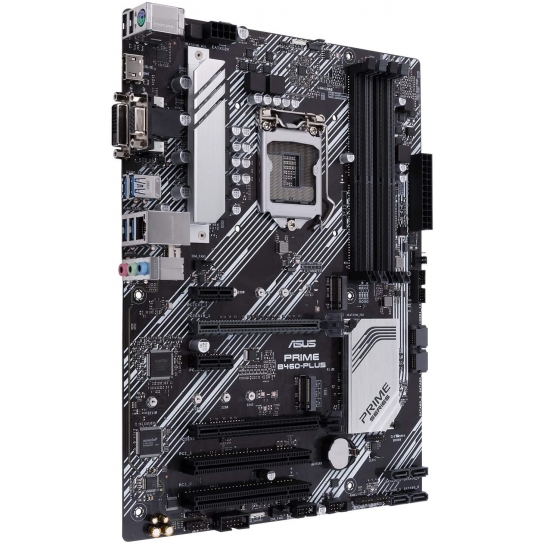

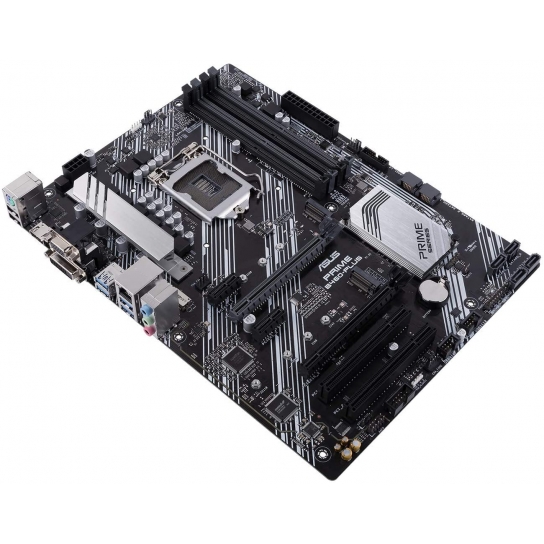

TheĀ ASUS PRIME B460-PLUS LGA 1200 ATX MotherboardĀ is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full-tower cases. Other integrated features include Realtek RTL811H Gigabit Ethernet and Realtek ALC887 7.1-channel HD audio.
CPU
Chipset | Intel B460 |
CPU Socket | LGA 1200 |
Back Panel I/O
USB | 4 xĀ USB 3.1 / USB 3.2 Gen 2 Type-A 2 xĀ USB 2.0 Type-A |
Display | 1 xĀ HDMI 1 xĀ DVI-D 1 xĀ VGA |
Audio | 3 xĀ 3.5 mm |
Ethernet / Controller | 1 xĀ Gigabit |
PS/2 | 1 xĀ Combo |
Memory
Memory Slots | 4 xĀ 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
Storage Expansion
SATA | 6 xĀ SATA III |
M.2 | 1 xĀ M Key 2242, 2260, 2280 (PCIe (Unspecified), SATA (Unspecified)) 1 xĀ M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) |
Optane Memory Support | Yes |
RAID Support | RAID 0, 1, 5, 10 |
Internal I/O
Expansion Slots | 1 xĀ PCIe 3.0 x16 2 xĀ PCIe 3.0 x1 2 xĀ PCI 5 V (32-Bit) |
USB | 1 xĀ USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 xĀ USB 2.0 Header (Supports 4 USB Type-A Port) |
Multi-GPU Support | 2-Way AMD CrossFireX |
Air Cooling | 1 xĀ 4-Pin CPU 3 xĀ 4-Pin System |
Power Connectors | 1 xĀ 24-Pin Mainboard 1 xĀ 8-Pin ATX |
LED Header | 2 xĀ RGB |
Audio | 1 xĀ S/PDIF |
Diagnostics | Clear CMOS |
BIOS
ROM | 128 Mb |
Front Panel I/O
I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
Audio
Audio Codec | Realtek ALC887 (7.1-Channel) |
Physical
Form Factor | ATX |
Dimensions | 12 x 9" / 30.48 x 22.86Ā cm |
