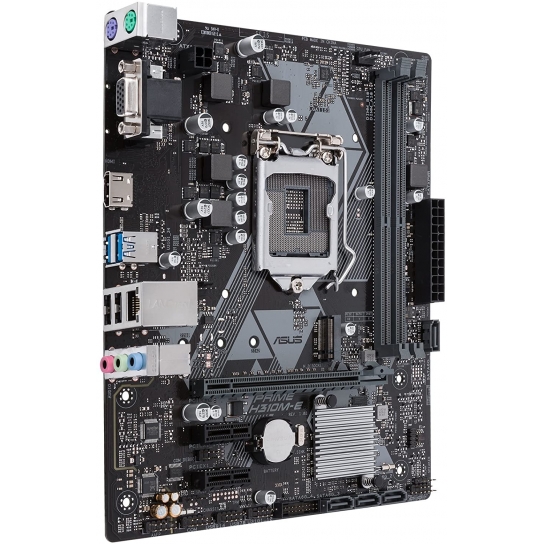

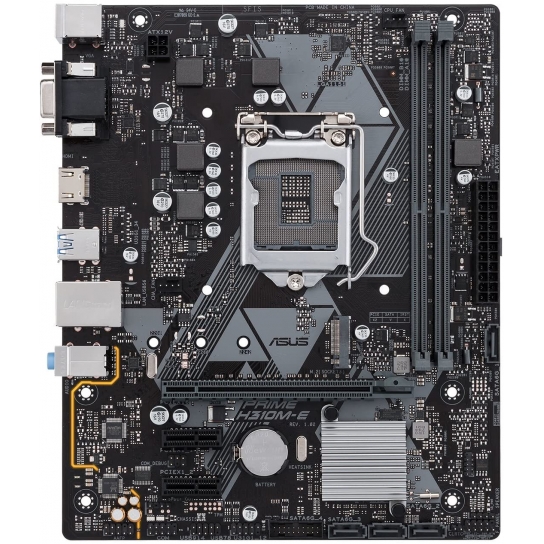

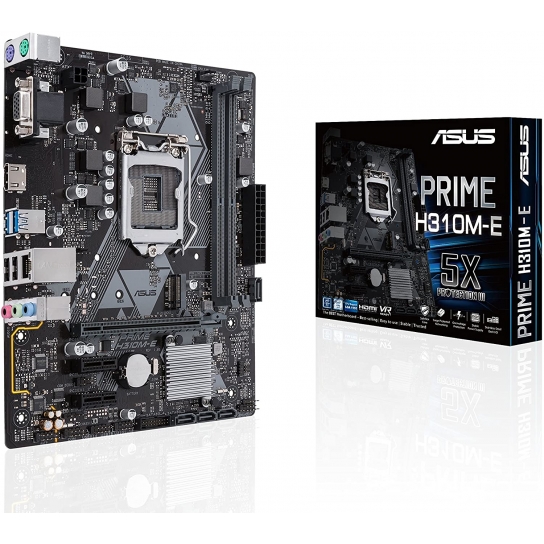

ASUS PRIME H310M-E Intel LGA-1151 mATX motherboard with LED lighting

MicroATX Motherboard with automated system tuning, cooling controls, and onboard audio.

Code

: PRIME H310M-E

Manufacturer

Availability

: Out of Stock

Rs. 13800 Rs. 14250
Qty :

Powered exclusively by 8th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the Prime H310M-E LGA 1151 Micro-ATX Motherboard from ASUS provides a solid foundation for your first build, plus the flexibility for growth, all of which are backed by automated system tuning, cooling controls, and onboard audio. This motherboard is designed to fit in micro-ATX sized cases, supports the LGA 1151 socket, the Intel H310 chipset, and is compatible with Windows 10 (64-bit).

Specifications:

Brand

ASUS

Model

PRIME H310M-E

CPU

Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® H310

Memory

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz
- Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1

Storage Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCI-E mode)*1
4 x SATA 6Gb/s port(s), gray,
LAN Realtek® RTL8111H, 1 x Gigabit LAN
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity
* Choose the chassis with an HD audio module in the front panel to support 8-channel audio output.
USB Ports Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Manageability WOL by PME, PXE
Form Factor mATX Form Factor
8.9  inch x 7.3  inch ( 22.6  cm x 18.5  cm )
