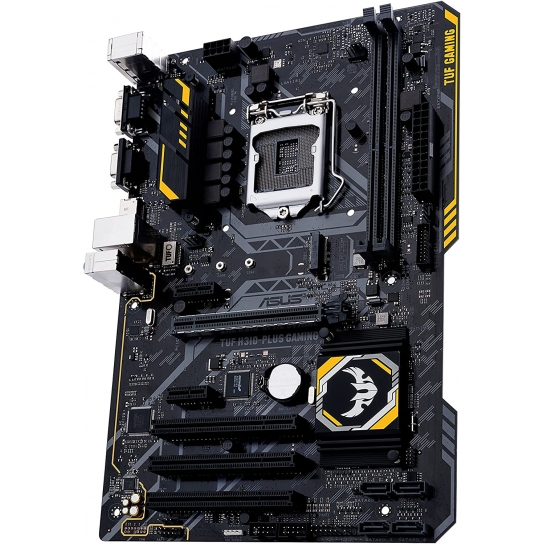

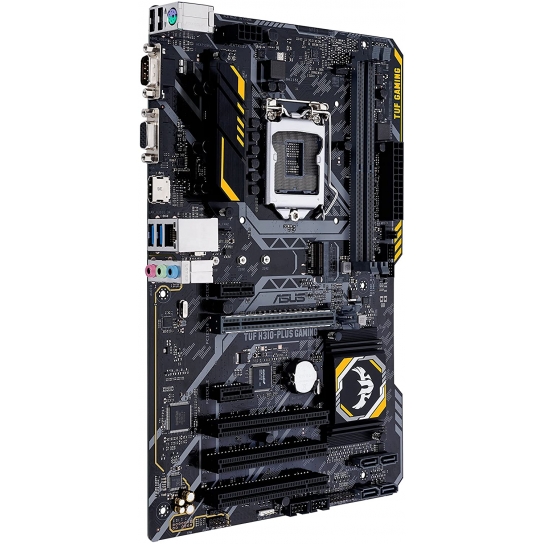

Powered exclusively by 8th Generation Intel Core processors, the TUF H310-Plus Gaming LGA 1151 ATX Motherboard from ASUS supports the Intel H310 chipset and the LGA 1151 socket. It is designed for 24/7 performance in ATX cases and is compatible with DDR4 memory, plus HDMI and VGA display outputs. Unlock your system's full potential with SafeSlot and Fan Xpert 2+, while M.2 and Gigabit LAN maximize connectivity and transfer speeds. TUF components provide enhanced system durability and this motherboard is protected by a limited 3-year warranty.
Brand |
ASUS |
Model |
TUF H310-PLUSÂ GAMING |
CPU |
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipset |
Intel® H310 |
Memory |
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
Graphic |
Integrated Graphics Processor- Intel® HD Graphics support |
Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) |
Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCI-E mode)*1 4 x SATA 6Gb/s port(s), gray, |
LAN | Intel® I219V, 1 x Gigabit LAN TUF LANGuard |
Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity * Choose the chassis with an HD audio module in the front panel to support 8-channel audio output. |
USB Ports | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
Internal I/O Ports | 1 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4Â -pin) 2 x Chassis Fan connector(s) (1 x 4Â -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
Manageability | WOL by PME, PXE |
Form Factor | ATX Form Factor 12Â inch x 7.9Â inch ( 30.5Â cm x 20.1Â cm ) |
