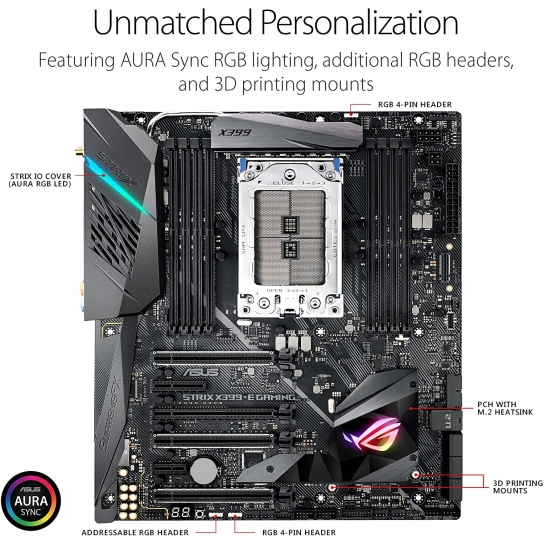

ROG Strix first motherboard for AMD’s HEDT platform with the Strix X399-E. Designed to take hardcore gamers beyond playing, the Strix X399-E wraps powerful performance in a striking exterior that’s easily personalized. Diffused Aura Sync RGB lighting cuts across the board like the slash of a katana, while standard and addressable headers take system illumination to the next level. With Ryzen Threadripper CPUs ready for gaming, streaming, and more, you can showcase your skills with unique style.
Brand |
ASUS |
Model |
ROG-STRIX X399-EÂ GAMING |
CPU |
AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors |
Chipset |
AMD X399 |
Memory |
AMD Ryzenâ„¢ Threadripperâ„¢ Processors |
Graphic |
Integrated Graphics in AMD Ryzenâ„¢ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors |
Multi-GPU Support |
AMD Ryzenâ„¢ 2nd Generation/Ryzenâ„¢ 1st Generation Processors |
Expansion Slots | 4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) AMD X399 chipset 1 x PCIe 2.0 x4 (max at x4 mode) 1 x PCIe 2.0 x1 |
Storage | AMD Ryzenâ„¢ Threadripperâ„¢ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCI-E 3.0 x 4 mode) 1 x U.2 port AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
LAN | Intel® I211-AT Anti-surge LANGuard ROG GameFirst IV |
Bluetooth | Bluetooth V4.2 |
Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dB(Line-out at rear)and113dBSNR recording input(Line-in) Audio Feature : - SupremeFX Shieldingâ„¢ Technology - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality - Sonic Radar III - Sonic Studio III |
USB Ports | AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A) 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM) |
Internal I/O Ports | 1 x Q_Code 1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.1 Gen 2 front panel connector |
Back I/O Ports | 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM 8 x USB 3.1 Gen 1 (blue) , 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback® Button(s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Form Factor | Extended ATX Form Factor 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm ) |
