Brand |
ASUS |
Model |
Prime X570-P/CSM |
CPU |
AMD AM4 Socket for AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
Chipset |
AMD X570 |
Memory |
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
Graphic |
Integrated Graphics in AMD Ryzenâ„¢ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors |
Multi-GPU Support |
AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
Expansion Slots | AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD RyzenTM 4000 G-Series / 2000 Series Processors 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
Storage | AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 4.0 x4 and SATA modes) storage devices support AMD Ryzenâ„¢ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Realtek® RTL8111H ASUS LAN Guard |
Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors Realtek S1200A 8-Channel High Definition Audio CODEC * - Supports: Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Front panel audio connector (AAFP) Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors * Choose the chassis with an HD audio module in the front panel to support 8-channel audio output. |
USB Ports | AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *) AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) AMD X570 chipset : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) AMD X570 chipset : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) AMD X570 chipset : 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors. |

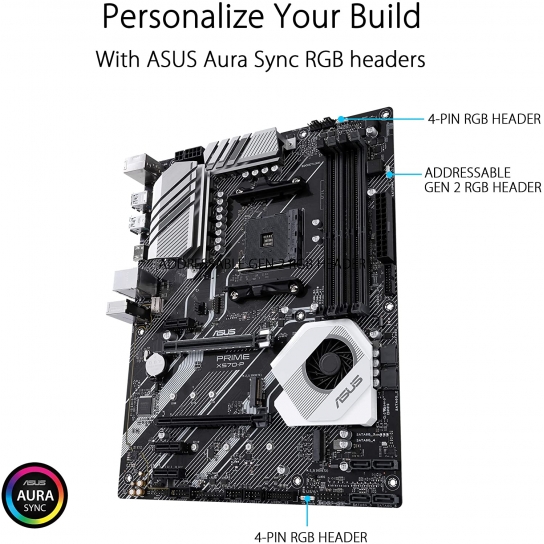

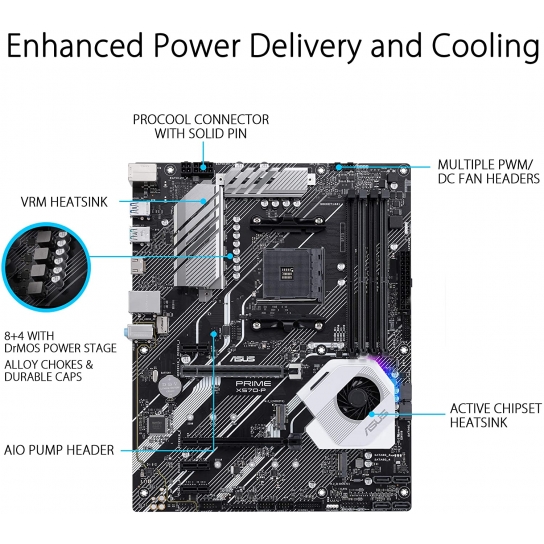

Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4Â -pin) 3 x Chassis Fan connector(s) (3 x 4Â -pin) 1 x PCH_FAN (1 x 4Â -pin) 1 x AIO_PUMP connector (1 x 4Â -pin) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WOL by PME, PXE |
Form Factor | ATX Form Factor 12.0Â inch x 9.6Â inch ( 30.5Â cm x 24.4Â cm ) |
