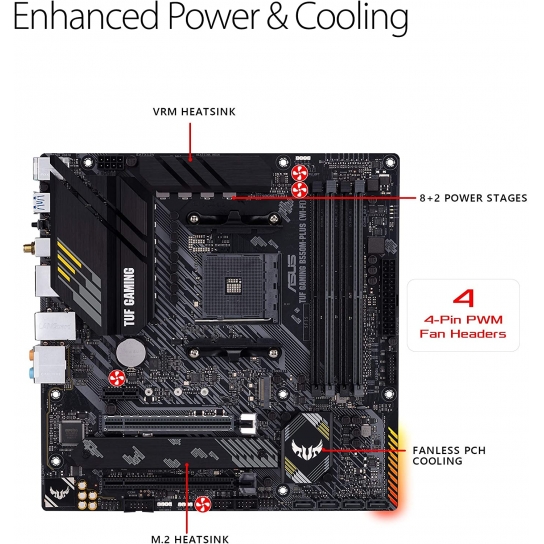

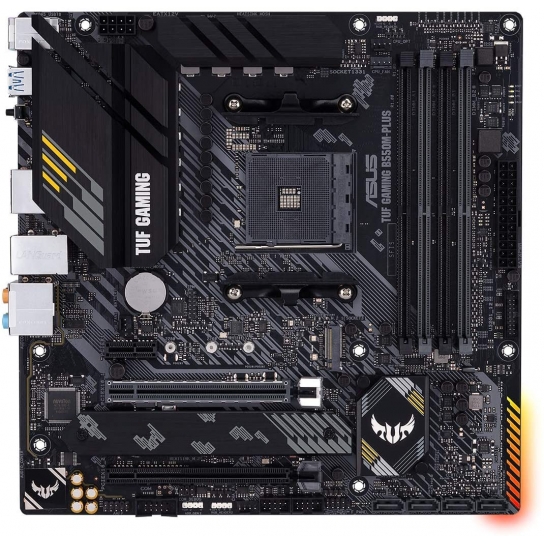

Brand |
ASUS |
Model |
TUF GAMING B550M-PLUS |
CPU |
AMD AM4 Socket for AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset |
AMD B550 |
Memory |
AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors |
Graphic |
1Â x DisplayPort 1.2 |
Multi-GPU Support |
Supports AMD 2-Way CrossFireX Technology |

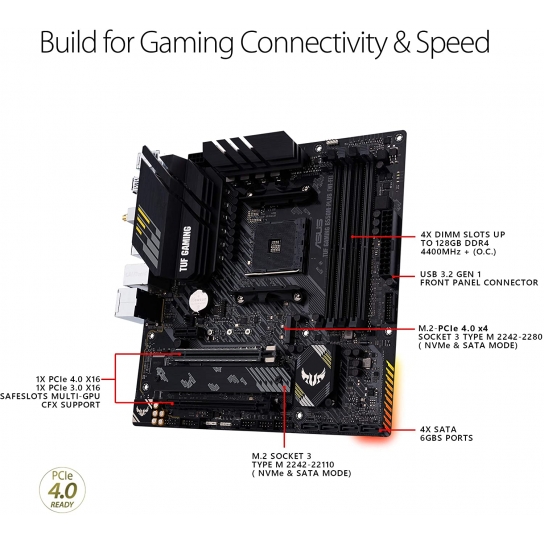

Expansion Slots | AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzenâ„¢ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. |
Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzenâ„¢ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
LAN | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
USB Ports | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 2 x USB 2.0 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Form Factor | mATX Form Factor 9.6Â inch x 9.6Â inch ( 24.4Â cm x 24.4Â cm ) |
