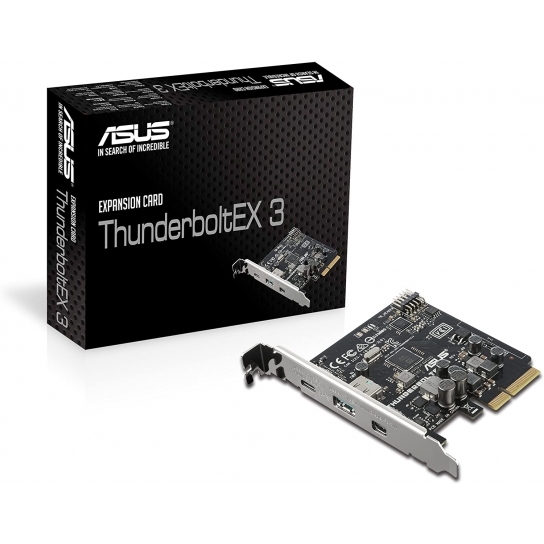

The ASUS ThunderboltEX 3 Expansion Card provides a single Thunderbolt 3 port for motherboards that have an available PCIe 3.0 x4 slot, Thunderbolt header, and DisplayPort. The Thunderbolt 3 port sports a reversible USB Type-C interface and delivers a maximum throughput of 40 Gb/s. The port supports USB 3.1 at up to 10 Gb/s as well as DisplayPort 1.2, allowing you to connect multiple displays simultaneously. With USB Power Delivery specification, it charges USB Type-C devices with up to 36W of power. You can daisy chain up to six Thunderbolt-equipped devices from a single Thunderbolt 3 port. In addition to Thunderbolt 3, this expansion card comes with a USB 3.1 Type-A port with 10 Gb/s speeds.
General
Host Interface | PCI Express 3.0 x4 |
External Connections | 1 x USB Type-C Thunderbolt 3 40 Gb/s 1 x USB Type-A USB 3.1 / USB 3.2 Gen 2 10 Gb/s 1 x Mini DisplayPort DisplayPort 1.2 |
RAID Modes | None |
OS Compatibility | Windows 10 Windows 8.1 Windows 8 Windows 7 |
Power
Port Power Delivery | 12 V at 3 A (36 W Max) |
Physical
Audible Alarm | No |
Status Monitoring | None |
Dimensions | 3.9 x 3.4" / 10 x 8.5Â cm |
