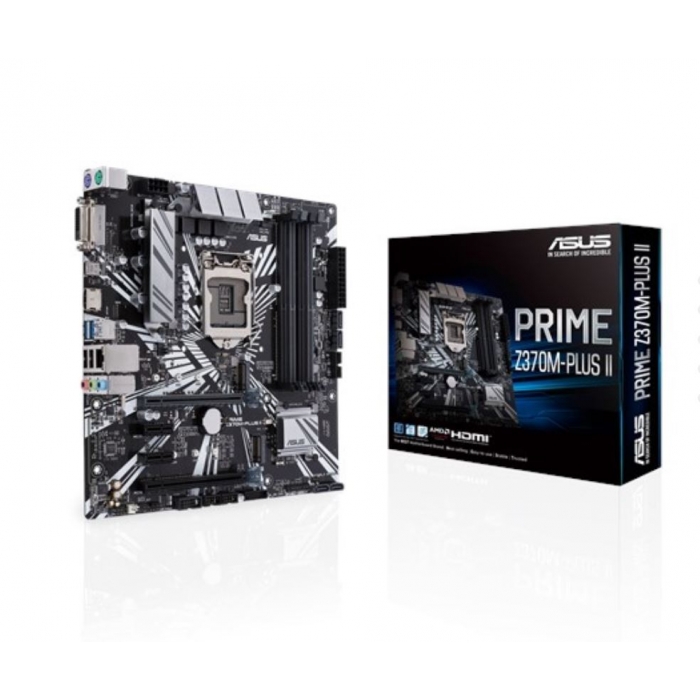

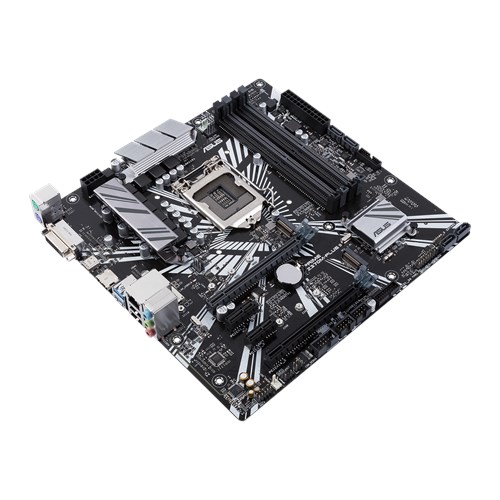

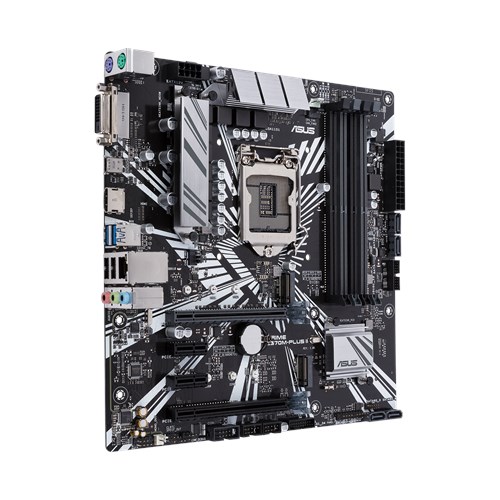

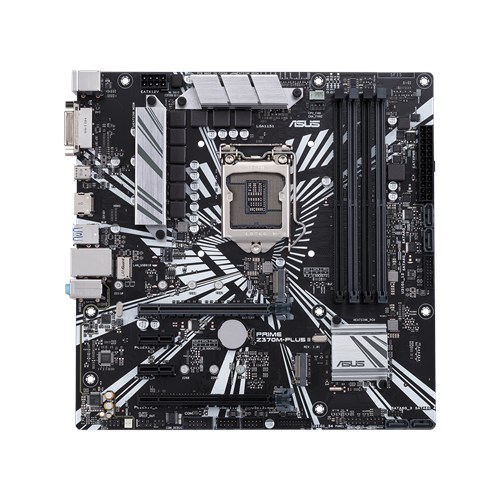

ASUS PRIME Z370M-PLUS II Motherboard

Enhanced power delivery motherboard.

Code

: Z370M-PLUS

Manufacturer

: ASUS

Availability

: Out of Stock

Rs. 26350

Call / Whatsapp / Viber / 9851134183 To Order

Qty :

DESCRIPTION

Specifications

CPU:

Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset:Intel® Z370

Memory:

4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphic:

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support:Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) *

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

2 x PCIe 3.0/2.0 x1

Storage:

Intel® Z370 Chipset :

1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

4 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)

PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card

LAN:

Intel® I219V, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

Audio:

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports:

Intel® Z370 Chipset :

7 x USB 3.1 Gen 1 port(s) (4 at mid-board)

Intel® Z370 Chipset :

6 x USB 2.0 port(s) (4 at mid-board)
