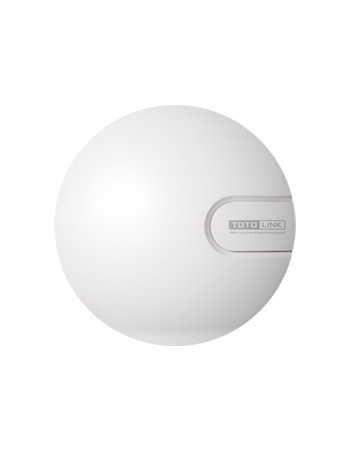

Totolink N9 300Mbps Long Range Wireless N Ceiling Mount AP

Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

Code

: N9

Manufacturer

Availability

: Out of Stock

Rs. 11000
Qty :

 Description


300MBPS DATA RATE, WIRELESS N COMPLIANT
Compiled with the 802.11n standard, it delivers up to 300Mbps wireless transfer rate with stable throughput for user to enjoy the best wireless connection.

DECENT CEILING MOUNT STYLE, SPACE SAVING
With beautiful and special ceiling mount design, N9 can connect to a existing WLAN network easily and extend Wi-Fi signal with fewer obstacle.

WIDE-COVERAGE
High output power design significantly enhances the stability of wireless signal and extends wireless range to reduce dead spots.

SOFT AC CONTROLLER FOR CENTRALIZED MANAGEMENT
When there are large numbers of N9 in LAN, you can centrally control these APs by SoftAC. It is simple and convenient for user to manage IP address, SSID and other setting.

FLEXIBLE POWER SUPPLY BY PASSIVE POE
Powered by 802.11af Power over Ethernet (PoE) technology, N9 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.

MULTIPLE WIRELESS NETWORK FOR ACCESS CONTROL
Multiple BSS function can isolate one wireless network to several different WiFi spots for security and good access management.

ROBUST SECURITY
The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection without having to worry about unauthorized use.

Features

  • Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
  • Up to 300Mbps data rate for Wi-Fi network.
  • Practical and elegant ceiling mount design.
  • Supports AP central management via SoftAC.
  • Advanced MIMO technology enhances the throughput and wireless coverage.
  • Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
  • Multiple BSS allows user to add other SSIDs for access management.
  • AP/WDS/Repeater mode selectable for different requirements.
  • PoE power supply supported simplify the deployment.

ADDITIONALGENERAL
BRAND TOTO LINK
MODEL N9
COLOR White
TYPE Access Points & Hot Spots
INSTALLATION FEATURES 1 *100BaseTX (Auto MDI/MDIX) LAN Port
CONTROLS 1 *Reset/WPS Button
LED INDICATOR 1 *System
FREQUENCY 2.4~2.4835GHz
POWER SUPPLY 48V DC/0.6A
IEEE 802.11af PoE
OTHER FEATURES Network: LAN Status / LAN/DHCP Setup
Wireless: Wireless Status / Wireless Setup / Multiple BSS / Wireless Multibridge / MAC Authentication / WDS, WPS / Advanced Setup
System : System Log / Administrator Setup / Firmware Upgrade / System Time / Configuration backup/restore / Misc Setup
WEIGHT 500 g
OPERATING CONDITIONS
OPERATING HUMIDITY 10%~90% non-condensing
TEMPERATURE 0℃~55℃ (32℉~131℉)
SUPPORT PROTOCOLS
STANDARD FEATURES IEEE
STANDARD IEEE IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
WIRELESS FEATURES
SIGNAL RATE 802. 11n: up to 300Mbps
802.11g: up to 54Mbps (dynamic)
802.11b: up to11Mbps (dynamic)
EIRP <20dBm
OTHER FEATURES Channels: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type: DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity
270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
CONNECTIVITY
ANTENNA Internal
NUMBER OF ANTENNAE 2
ANTENNAE CAPACITY 4dBi
SECURITY
ENCRYPTION 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
SALES PACKAGE
IN THE BOX Main Unit
User Manual
Warranty Card
WEIGHT 800.0000
WARRANTY
WARRANTY PERIOD 1 Year Manufacturer Warranty
