Features
Brand TOTOLINK

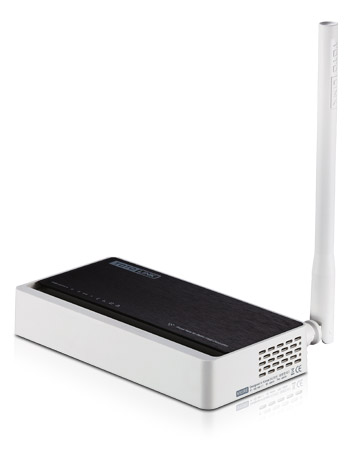

Model N150RT
Â
Hardware
Interface     4*10//100Mbps LAN Ports
    1*10/100Mbps WAN Port
Power 9V DC/0.5A
Button WPS & Reset two-in-one button
LED Indicators 1*Power, 1*CPU, 1*Wireless, 1*WAN, 4*LAN
Antenna 1*5dBi fixed antenna
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency 2.4~2.4835GHz
Data Rate 802.11n: up to 150Mbps
    802.11g: up to 54Mbps (dynamic)
    802.11b: up to11Mbps (dynamic)
Wireless Security 64/128-bit WEP, WPA/WPA2 (AES/TKIP) and 802.1x
Output Power 20dBm (Max.)
Channels     1-11 (North America), 1-13 (General Europe), 1- 14 (Japan)
Modulation Type DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity 135M: -65 dBm@10% PER
         54M: -68 dBm@10% PER
         11M: -85 dBm@8% PER
           6M: -88 dBm@10% PER
        1M: -90 dBm@8% PER
Network Settings WAN Interface: PPPoE/DHCP/Static IP
LAN Interface/DHCP Server
Wireless Wireless Basic Settings
Multiple BSS
Wireless Multibridge: Repeater bridge/Repeater/WDS
MAC Authentication
WPS Settings
Advanced Settings
Function 150Mbps Wireless/802.11n/b/g
Firewall Settings Access Control
IP/Port Filtering
MAC Filtering
URL Filtering
Port Trigger
Port Forwarding
DMZ
Warranty
Manufacturing Warranty 1 Years
