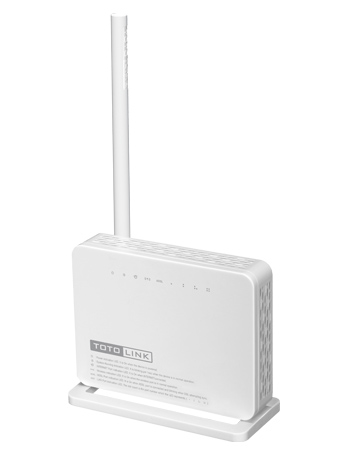

Totolink 150Mbps Wireless N ADSL 2/2+ Modem Router-ND150



ND150 is a Wireless ADSL Router which integrates the functions of high speed ADSL Modem, wireless router and 4-port switch into one. Complied with advanced IEEE 802.11n and latest ADSL 2/2+ standards, it delivers up to 150Mbps wireless data rate and provide higher performance with wider transmission coverage. Besides, ADSL or WAN connection is selectable accordingly.



ND150 is a all-in-one solution that can be used as a high speed ADSL modem, Wireless Router, Access Point and 4-port Switch, clean up your desktop.



With 802.11n compliant, you will enjoy 150Mbps Wi-Fi for fast and stable Wireless network connection.



SELECTABLE ADSL OR WAN BROADBAND ACCESS

With one ADSL port and one WAN port, Both ADSL or WAN broadband connection are selectable for you to access the Internet.



Quickly turn Wi-Fi on or off by pressing the Wi-Fi on/off button on the router, which helps to simplify configuration and save power.

More than one Wi-Fi networks can be added to provide secure Wi-Fi access for guest sharing your home or office network.



ND150 supports IPv6 protocol and back compatible with IPv4, safer and more practical.



The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to secure Wi-Fi connection and avoid any unauthorized use.



EASY SETUP

Simply follow the Easy Setup's configuration step-by-step, you are able to access the Internet quickly and build Wi-Fi network easily.



Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

Up to 150Mbps data rate for Wi-Fi network.

Combines functions of high speed ADSL Modem, wireless router and 4-port switch.

Supports both ADSL and WAN broadband access.

Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.

Supports IPv6 protocol.

Supports PVC detecting automatically.

IGMP multicast and IGMP proxy are supported.

Multiple BSSID function allows user to set maximum three virtual APs for different needs.

QoS function allocates network bandwidth reasonably.

The IP, MAC and URL filtering makes access and time control more flexibly.

Repeater and WDS function for easy WiFi expansion.

Wi-Fi on/off and Power on/off buttons make configuration simple.



BRAND TOTO LINK

MODEL ND150

COLOR White

TYPE Wireless Routers With Modem

CONTROLS WPS/RST Button

Wi-Fi ON/OFF Button

Power ON/OFF Switch

LED INDICATOR 1 *Power, 1 *System, 1*Internet, 1*WLAN, 1*ADSL, 4 *LAN

FREQUENCY 2.4~2.4835GHz

POWER SUPPLY 9V DC/0.5A

OTHER FEATURES Network: Easy Setup / WAN / LAN, LAN IPv6, DHCP

PRODUCT DIMENSIONS 122 x 99 x 55 mm

WEIGHT 380 g

SUPPORT PROTOCOLS

STANDARD FEATURES IEEE

STANDARD IEEE IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

ADSL, ADSL2, ADSL2+

WIRELESS FEATURES

SIGNAL RATE 802.11n: up to 150Mbps

802.11g: up to 54Mbps (dynamic)

802.11b: up to11Mbps (dynamic)

EIRP < 20dbm

OTHER FEATURES Reception Sensitivity

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

ANTENNA External

NUMBER OF LAN PORTS 3

NUMBER OF WAN PORTS 1

WAN 10/100Mbps RJ45 WAN/LAN Port

LAN 10/100Mbps RJ45 LAN Ports

ADSL PORT 1 *RJ11 ADSL Port

NUMBER OF ANTENNAE 1

ANTENNAE CAPACITY 5dBi

SECURITY

ENCRYPTION 64/128-bit WEP, WPA/WPA2 (AES/TKIP)

FIREWALL MAC/IP/PORT /URL Filter

ACL, DoS

ADDITIONAL FEATURES

OTHER FEATURES Wireless : MBSSID, Access Control List / WPS, WDS, Repeater

Advance : Route, NAT, QoS, CWMP / Port Mapping, Bridge Setting

Service : IGMP, UPnP, DDNS, FTP Server

Maintenance : Upgrade, Password, Reboot / Time, Log, Diagnostics

SALES PACKAGE

IN THE BOX ND150 Wireless ADSL Router *1

Power Adapter *1

Ethernet Cable *1

Telephone Cable *2

ADSL Splitter *1

Quick Installation Guide *1

WEIGHT 700.0000

WARRANTY PERIOD 1 Year Manufacturer Warranty
