Totolink CP300 300Mbps 2.4GHz Wireless N AP/Client Outdoor

Two external antennas enhance the throughput&rsquo;s stability.

Code

: CP300

Manufacturer

: TOTO link

Availability

: Out of Stock

Rs. 8700

Call / Whatsapp / Viber / 9851134183 To Order

Qty :

DESCRIPTION

Description

CP300 is WISP CPE Solution that specially designed for long distance wireless transmission. With two internal high gain antennas and advanced radio architecture, it can make the radio signal transmission coverage more extensive with a stable wireless connection and deliver up to 300Mbps data rate. Powered by Passive PoE, CP300 simplifies the network cable deployment and is suitable for all kinds of environment with the waterproof design.

LONG DISTANCE TRANSMISSION

With two internal high performance antennas, CP300 can deliver up to 300Mbps wireless data rate with stable Wi-Fi connection. Placed on the roof of the building, it can excellently transfer stable signal for long distance use.

PROTECTION DESIGN

With the waterproof design, it can adapt to any poor working environment and effectively protect itself from dust, water and lightning.

FLEXIBLE POWER SUPPLY BY PASSIVE POE

Powered by Power over Ethernet (PoE) technology, CP300 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.

Features

Complies with IEEE802.11n /g/b standards on 2.4G band.
Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
Two powerful internal antennas.
Multiple APs allows user to add other two SSIDs accordingly.
4 LED signal strength indications.
Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
Repeater function allows more terminals to access Internet.
Supports passive PoE power supply.
Lightning protection design.
QoS can allocate bandwidth reasonably.

ADDITIONALGENERAL

BRAND TOTO LINK

MODEL CP300

COLOR White

TYPE Wireless Routers Without Modem

CONTROLS 1 *Reset Button

LED INDICATOR 1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength

FREQUENCY 2.4~2.4835GHz

POWER SUPPLY 12V DC /1A (PoE)

PRODUCT DIMENSIONS 260 x 39 x 89 mm

WEIGHT 350 g

OPERATING CONDITIONS

OPERATING HUMIDITY 10%~90% non-condensing

TEMPERATURE 0â„ƒ~40 â„ƒ (32 â„‰~104â„‰)

SUPPORT PROTOCOLS

STANDARD FEATURES IEEE

STANDARD IEEE IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3

WIRELESS FEATURES

EIRP < 20dBm

OTHER FEATURES Reception Sensitivity

270M: -64 dBm@10% PER

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

SPEED

WIRELESS SPEED

802.11n: up to 300Mbps

802.11g: up to 54Mbps (dynamic)

802.11b: up to 11Mbps (dynamic)

CONNECTIVITY

ANTENNA Internal

NUMBER OF LAN PORTS 1

LAN 100BaseTX (Auto MDI/MDIX) LAN Port

NUMBER OF ANTENNAE 2

ANTENNAE CAPACITY 8dBi

SECURITY

ENCRYPTION 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

FIREWALL IP/Port Filtering, MAC Filtering, URL Filtering, Port Forwarding

DMZ Setting, Denial of Service

ADDITIONAL FEATURES

OTHER FEATURES Operation Mode: Gateway, Bridge, Wireless ISP

Network: LAN Setup, Static DHCP Setup , WAN Setup

Wireless: Basic Setting, Security Setting, Advanced Setting, Multiple APs / MAC Authentication, WDS, WPS, Repeater

Management : Statistics, Dynamic DNS Setting (Bridge mode doesn’t have this option), Time Zone Setting, Remote Management, System Log, Upgrade Firmware, Save/Reload Setting, Administrator Setting

SALES PACKAGE

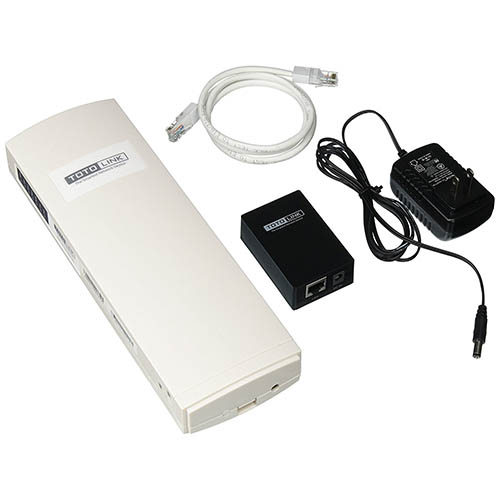

IN THE BOX CP300 Wireless CPE *1

PoE Box *1

Power Adapter *1

Ethernet Cable *1

Quick Installation Guide *1

WEIGHT 550.0000

WARRANTY

WARRANTY PERIOD 1 Year Manufacturer Warranty
