Details | |
---|---|
Product code | RB1100x4 |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
Dimensions | 444 x 148 x 47 mm |
License level | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
Â
Details | |
---|---|
PoE in | 802.3af/at |
PoE in input Voltage | 20-57 V |

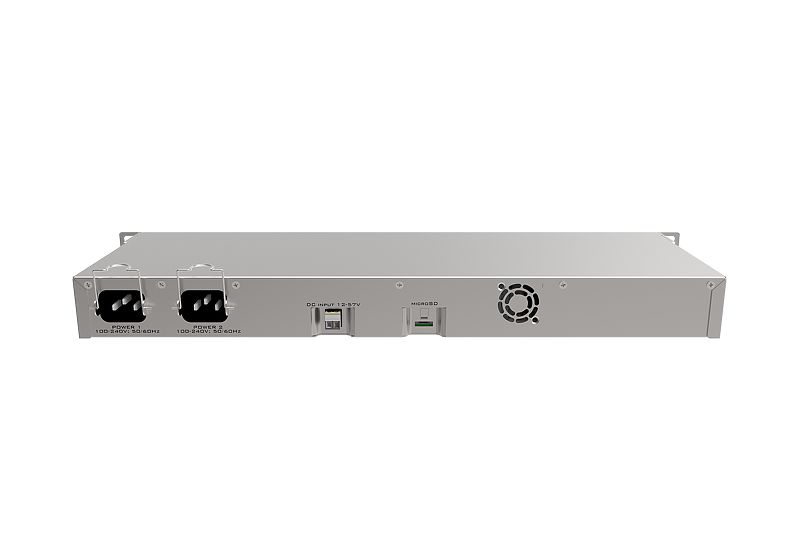

Number of AC inputs | 2 |
AC input range | 100-240 |
Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
2-pin terminal input Voltage | -48, 12-57 V |
Max power consumption | 20 W |
Â
Details | |
---|---|
10/100/1000 Ethernet ports | 13 |
Â
Details | |
---|---|
Memory card type | microSD |
Memory Cards | 1 |
Serial port | RS232 |
Â
Details | |
---|---|
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Â
