- Â Open VPN Server Support
- Dual-WAN Load Balancing
- Integrated Firewall
- 802.1q VLAN
- EasyLink VPN for simple VPN Setup
- Superior IP Sec Throughput
TECHNICAL SPECS

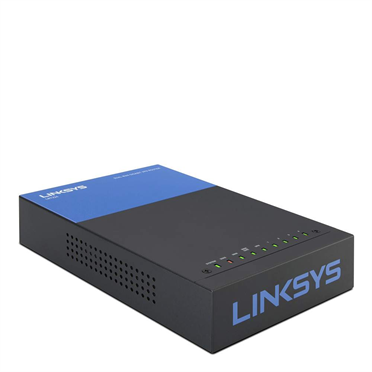

Model Name:
LRT224Â
Dual-WAN:
Link failover, load balancingÂ
Protocol & IP binding to a WAN port
Firewall:
SPI (Stateful Packet Inspection)Â
DoS (Denial of Service) preventionÂ
Schedule-based access rules (50)Â
Web filtering (URL and keyword blocking)Â
Block Java, cookies, ActiveX, http proxy serversÂ
IGMP proxyÂ
UPnP
Site-to-Site VPN:
50 IPsec site-to-site tunnelsÂ
Split DNS over site-to-site tunnelÂ
VPN backup for site-to-site tunneÂ
DPD (Dead Peer Detection)Â
Keep aliveÂ
NAT-traversal
Remote Access VPN:
OpenVPNÂ
PPTPÂ
Client-to-Site IPsec
NAT:
Gateway modeÂ
Router mode
NAPT:
1-to-1 NAT (10)Â
Port forwarding (30)Â
Port triggering (30)Â
Port address translation (30)Â
DMZ host
DMZ Port:
DMZ RangeÂ
DMZ Subnet
802.1q VLAN:
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)Â
DHCP Server:
Supports multiple address pools, one pool per VLAN subnetÂ
DNS:
DNS ProxyÂ
DNS Local Database
Monitoring/Alerting:
SyslogÂ
Email AlertÂ
SNMP Trap
WAN Connection:
Dynamic IPÂ
PPPoEÂ
PPTPÂ
L2TPÂ
Static IPÂ
Transparent Bridge
DDNS:
Dynamic DNS (DynDNS, 3322)Â
NOIPÂ
ChangeIP
Routing:
StaticÂ
IPv6:
DHCPv6-PDÂ
6to4Â
Router Advertisement
Maintenance:
Configuration backup and restoreÂ
Dual configurations (startup and mirror)Â
Firmware upgradeÂ
Diagnostics (ping and DNS name lookup)Â
RebootÂ
Factory defaults
Status and Statistics:
WAN connection statusÂ
VPN tunnel/user statusÂ
Port status and statistics
Ports:
One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android)Â
LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1–4Â
Port Management:
10/100/1000 MbpsÂ
Auto negotiationÂ
Half/Full duplex
Performance:
IPsec VPN throughput: 110 MbpsÂ
Maximum NAT throughput: 900 MbpsÂ
Maximum concurrent connections: 30,000
Dimensions (LxWxH):
191 x 130 x 40 mmÂ
Weight:
722.2 grams (28.43 oz)Â
Power:
12 V, 1 AÂ
Operating Temperature:
0ºC to 40ºC (32ºF to 104ºF)Â
Storage Temperature:
0ºC to 70ºC (32ºF to 158ºF)Â
Storage Humidity:
5% to 90% non-condensingÂ
Mounting:
WallÂ
Desktop
VLAN Trunking:
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switchesÂ
Security Lock:
Kensington LockÂ
Regulatory Compliance:
FCC Class B, CE Class BÂ
Warranty and Support:
Limited Lifetime WarrantyÂ
Bandwidth Management:
Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priorityÂ
LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1-4Â
Non-operating Temperature:
0ºC to 70ºC (32ºF to 158ºF)Â
Reset Button:
YesÂ
UPnP:
YesÂ
Web-based Administrative Interface:
Browser supporting IEÂ
FirefoxÂ
SafariÂ
Setup wizardÂ
Remote managementÂ
