DESCRIPTION
300MBPS WIRELESS SPEED
N200RE-V3 complies with wireless 11n standard and delivers Wi-Fi speed up to 300Mbps, satisfying all internet activities like network communication, online gaming and video streaming.
Â

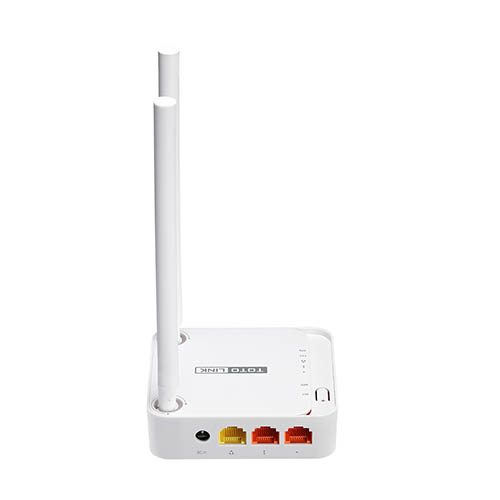

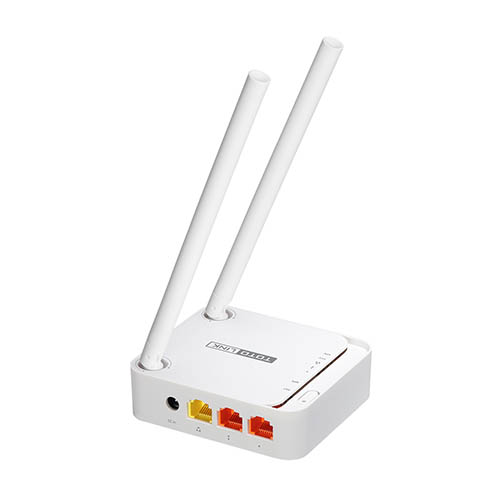

MINI DESIGN, MAX USE
Two high performance antennas and two LAN ports design supports high speed Wi-Fi and wired connection simultaneously.
Â
EASY SETUP
For Wi-Fi devices first connected to N200RE-V3, the log in page will show up automatically, configuration has never been so easier.
Â
ENJOY YOUR IPTV
Simply set up IPTV related information on N200RE-V3's Easy Setup page, you can enjoy smooth IPTV and fast Wi-Fi simultaneously.
Â
MULTIPLE WIRELESS NETWORK FOR ACCESS CONTROL
Except the default wireless SSID, you are allowed to add two more Wi-Fi networks for different purpose, such as guest use, staff use or manager use, better access control of wireless network.
Â
PARENTAL CONTROL
Wi-Fi Schedule helps parents to set up time schedule for Wi-Fi network access, effectively preventing children caught in the web, better for parental control.
Â
ADVANCED SECURITY
N200RE-V3 supports the most advaned WPA/WPA2-PSK encryption to ensure the security of wireless connections, protecting Wi-Fi network from any unauthorized use.
Â
IPV6 READY
N200RE-V3 supports IPv6 protocol for higher security and wider IP address range.
Â
- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
- Up to 300Mbps data rate for Wi-Fi network.
- Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, Port, MAC, URL filtering and Port Forwarding.
- QoS: Bandwidth Control based on IP/MAC.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Supports VLAN function for IPTV and other internet services.
- Universal repeater and WDS function for easy Wi-Fi extension.
- Supports TR-069 protocol for remote centralized management.
Â
Â
ADDITIONALGENERAL
BRAND TOTO LINK
MODEL N200RE-V3
COLOR White
TYPE Ethernet Routers & Switches
CONTROLS 1 *RST Button
    1 *WPS Button
LED INDICATOR 1 *CPU, 1 *Wireless, 1 *WAN, 2 *LANs
FREQUENCY Â Â Â Â Â 2.4~2.4835GHz
POWER SUPPLY 9V DC/0.5A
OTHER FEATURES Operation Mode: Wireless ISP Client Router / Wireless Client / Repeater(Range Extender) / Router / Bridge with AP / ClientÂ
Network: VLAN, IPv6
WAN Type: DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access)
Wireless Functions: Multiple SSID, MAC Authentication, Universal Repeater, WDS,WPS
Schedule: Reboot Schedule, Wireless Schedule
Management: Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control
PRODUCT DIMENSIONS 91 x 80 x 25 mm
WEIGHT 300 g
Â
OPERATING CONDITIONS
OPERATING HUMIDITY 10%~90% non-condensing
TEMPERATURE 0℃~40 ℃ (32 ℉~104℉)
SUPPORT PROTOCOLS
STANDARD FEATURES IEEE
STANDARD IEEE IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
WIRELESS FEATURES
SIGNAL RATE 802. 11n: Up to 300Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to11Mbps (dynamic)
EIRP < 20dBm
OTHER FEATURES Reception Sensitivity
270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
CONNECTIVITY
ANTENNA External
NUMBER OF LAN PORTS 2
NUMBER OF WAN PORTS 1
WAN 10/100Mbps WAN Port
LAN 10/100Mbps LAN Ports
NUMBER OF ANTENNAE 2 fixed antennas
ANTENNAE CAPACITY 5dBi
Â
SECURITY
ENCRYPTION 64/128-bit WEP, WPA/WPA2 and WPA-Mixed
FIREWALL MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
SALES PACKAGE
IN THE BOX N200RE-V3 Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
WEIGHT 450.0000
WARRANTY
WARRANTY PERIOD 1Â Year Manufacturer Warranty
