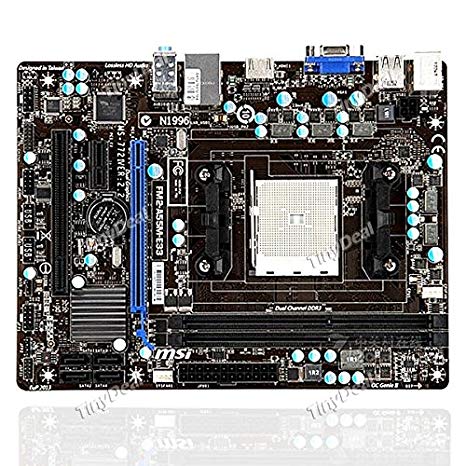

MSI FM2 A55M-E33

Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet\\r\\nNetwork ControllerRealtek RTL8111E\\r\\nNetworkGigabit Ethernet

Code

: MSI FM2 A55M-E33

Manufacturer

Availability

: Out of Stock

Rs. 7497
Qty :



GENERAL

  • Chipset Type
    AMD A55
  • Compatible Processors
    A8 series, A6 series, A4 series, A10 series
  • Processor Socket
    Socket FM2
  • Max Processors Qty
    1
  • Manufacturer
    MSI Computer Corp.

EXPANSION / CONNECTIVITY

  • Expansion Slots
    1 x CPU
    2 x DIMM 240-pin (1.5 V)
    1 x PCIe 2.0 x16
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage Interfaces
    SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / JBOD
  • Internal Interfaces
    2 x USB 2.0
    1 x audio - header
    1 x serial - header
  • Power Connectors
    4-pin ATX12V connector, 24-pin main power connector

PROCESSOR

  • Max Supported Qty
    1
  • Installed Qty
    0

MEMORY

  • Max Allocated RAM Size
    1 GB

AUDIO

  • Audio Codec
    Realtek ALC887
  • Compliant Standards
    High Definition Audio

PROCESSOR / MEMORY / STORAGE

  • Max Supported Qty
    1

NETWORKING

  • Data Link Protocol
    Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Controller
    Realtek RTL8111E
  • Network
    Gigabit Ethernet

MISCELLANEOUS

  • Product Type
    motherboard

INTERFACE PROVIDED

  • Qty
    1, 4
  • Type
    HDMI, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone
  • Connector Type
    mini-jack

VIDEO

  • Video Output
    graphics adapter (CPU required)

GRAPHICS

  • Max Allocated RAM Size
    1 GB

RAM

  • Max Supported Size
    16 GB
  • Features
    dual channel memory architecture

AUDIO OUTPUT

  • Compliant Standards
    High Definition Audio
  • Type
    sound card
  • Audio Codec
    Realtek ALC887
  • Audio
    High Definition Audio (8-channel)

LAN

  • Network Interfaces
    Gigabit Ethernet
  • Network Controller
    Realtek RTL8111E

SUPPORTED RAM

  • Bus Clock
    1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz
  • Features
    Dual channel memory architecture
  • Registered or Buffered
    Unbuffered
  • Technology
    DDR3
  • Max Size
    16 GB

HEADER

  • Brand
    MSI
  • Product Line
    MSI
  • Model
    FM2-A55M-E33
  • Packaged Quantity
    1
  • Compatibility
    PC

MAINBOARD

  • Form Factor
    micro ATX
  • Processor Socket
    Socket FM2
  • Compatible Processors
    A10 series, A4 series, A6 series, A8 series
  • Chipset Type
    AMD A55
  • Supported RAM Technology
    DDR3 SDRAM
  • Supported RAM Speed
    1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz, 2133 MHz
  • Supported RAM (Registered or Buffered)
    unbuffered
  • RAM Slots
    2 DIMM slots
  • Power Connectors
    24-pin main power connector, 4-pin ATX12V connector

MAINBOARD FEATURES

  • BIOS Features
    M-Flash, MSI ClickBIOS II, UEFI BIOS
  • Hardware Features
    AMD Cool 'n' Quiet Technology, AMD Radeon Dual Graphics, All-Solid Capacitor motherboard Design, Auto OC Genie, MSI Winki 3, OC Genie II, Super Charger, USB Safeguard

INTERFACES

  • Storage
    Serial ATA-300 (RAID)
  • Storage Ports
    4 x SATA-300 (RAID)
  • USB / FireWire Ports Configuration (Active)
    4 x USB 2.0

EXPANSION SLOTS

  • Total Qty
    1, 2
  • Voltage
    1.5 V
  • Type
    CPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 2.0 x16

SOFTWARE

  • Software Included
    MSI Live Update 5

DIMENSIONS & WEIGHT

  • Width
    8.9 in
  • Depth
    6.8 in

VIDEO MEMORY

  • Max Allocated RAM Size
    1 GB

STORAGE INTERFACES

  • Interface
    Serial ATA-300
  • Connector(s)
    4 x 7pin Serial ATA
  • Supported Devices Qty
    4
  • RAID (Level)
    RAID 0 / RAID 1 / RAID 10 / JBOD

INTERNAL INTERFACES

  • Type
    USB 2.0, audio, serial
  • Connector Type
    header
  • Qty
    1, 2

FEATURES

  • Hardware Features
    AMD Cool 'n' Quiet Technology, USB Safeguard, All-Solid Capacitor motherboard Design, Auto OC Genie, OC Genie II, MSI Winki 3, Super Charger, AMD Radeon Dual Graphics
  • BIOS Features
    M-Flash, UEFI BIOS, MSI ClickBIOS II

GENERAL

  • Manufacturer
    MSI Computer Corp.
