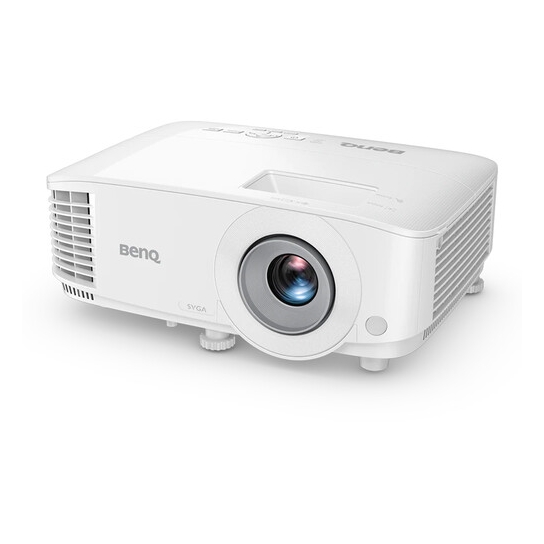

Benq MS560 4000lms SVGA Meeting Room Projector

Entering the Era of Digital Transformation

Code

: MS560

Manufacturer

Availability

: In Stock

Rs. 57000 Rs. 59900
Qty :

Key Features:

  • Brightness of 4000 ANSI Lumens
  • SVGA (800 x 600) Native Resolution
  • 1.1x Zoom / 1.96 to 2.15:1 Throw Ratio
  • VGA, S-Video, Composite, 2x HDMI Inputs
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • Built-In 10W Mono Speaker
  • VGA Cable & IR Remote Included

All Specifications:

Projection System

Projection System

DLP

DMD size

0.55"

Display

Brightness (ANSI lumens)

4000

Native Resolution

SVGA (800x600)

Native Aspect Ratio

4:3

Contrast Ratio (FOFO)

20000:1

Display Color

30 Bits (1,07 billion colors)

Light Source

Lamp

Light Source Life

a. Normal 6000 hrs,b. ECO 10000 hrs,c. SmartEco 10000 hrs,d. LampSave 15000 hrs

Optical

Throw Ratio

1.96~2.15

Zoom Ratio

1.1x

Lens

F/# = 2.56 ~ 2.68, f=22~24.1mm

Projection Offset (Full-Height)

110%

Keystone Adjustment

1D, (Auto) Vertical ± 40 degrees

Compatibility

Input Lag

1 frame (16.67ms) 60Hz

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

I/O Interface

PC in (D-sub 15pin)

(x1)

Monitor out (D-sub 15pin)

(x1)

Composite Video in (RCA)

(x1)

S-Video in (Mini DIN 4pin)

(x1)

HDMI in

(x2),HDMI-1 (1.4a/HDCP1.4),HDMI-2 (1.4a/HDCP1.4)

USB Type A

(x1)

USB Type Mini B

(x1)

RS232 in (DB-9pin)

(x1)

Audio

Speaker

(x1),10W

Audio in (3.5mm Mini Jack)

1

Audio out (3.5mm Mini Jack)

1

Environment

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

260W/110V

Acoustic Noise (Typ./Eco.)(dB)

34/29

Operating Temperature

0~40℃

Accessories

Carry Bag

Yes,5J.J3T09.001 (optiol)

Remote Control w/ Battery

RCX016

Power Cord (by region)

x1 (1.8M)

VGA(D-sub 15pin) Cable

(Standard),1 (1.5m)

3D Glasses

(Optional),DGD5

Quick Start Guide

1 (21L)

Warranty Card (by region)

Yes

Universal Ceiling Mount

(Optional),Yes, CMG3

Dimension & Weight

Dimensions (WxHxD) (mm)

296 x120 x221

Net Weight (kg)

2.3
