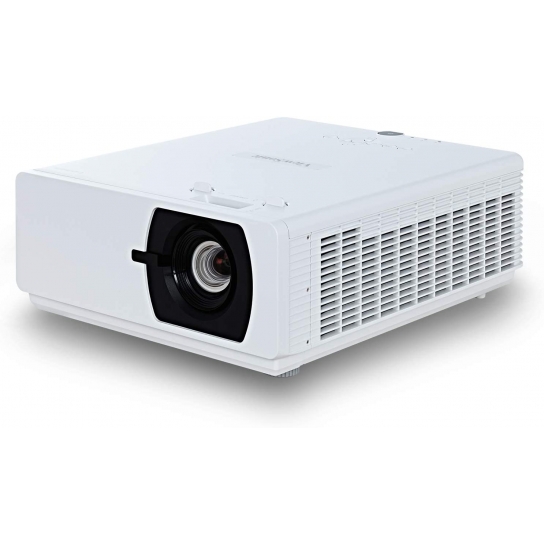

ViewSonic LS800WU 5500 Lumens WUXGA Laser Projector

Specifications:

RESOLUTION

1920 x 1200

THROW RATIO

1.2 - 1.9

THROW DISTANCE

4.1 - 41 ft / 1.3 - 12.5 m

BRIGHTNESS (LUMENS)

5,500 ANSI

DISPLAY

TYPE

DLP Laser

RESOLUTION TYPE

WUXGA (1920x1200)

RESOLUTION

1920 x 1200

BRIGHTNESS (LUMENS)

5,500 ANSI

DISPLAY SIZE (IN.)

30 - 300 in. / 0.76 - 7.62 m

THROW DISTANCE

4.1 - 41 ft / 1.3 - 12.5 m

THROW RATIO

1.2 - 1.9

KEYSTONE

Vertical (+/- 25º) / Horizontal (+/- 30º)

LENS

1.65x optical zoom

LIGHT SOURCE (WATT)

Laser bank x 4

LIGHT SOURCE LIFE, NORMAL (HOURS)

20000

LIGHT SOURCE LIFE, DYNAMIC ECO-MODE (HOURS)

30000

COLOR DEPTH

1.07B Color (R/G/B 10bit)

DYNAMIC CONTRAST RATIO

100,000:1

ASPECT RATIO

16:10

LENS SHIFT

Horizontal (-2.5% +2.5%) / Vertical (-2.4% +9.2%)

OPERATION RATING

24/7

VIDEO SIGNAL

FREQUENCY HORIZONTAL

15K~102KHz

FREQUENCY VERTICAL

23~120Hz

COMPATIBILITY

PC RESOLUTION (MAX)

1920 x 1200

PC RESOLUTION (MIN)

640 x 480

MAC® RESOLUTION (MAX)

1920 x 1200

MAC® RESOLUTION (MIN)

640 x 480

CONNECTOR

USB 2.0 TYPE A

1

ETHERNET LAN (RJ45)

1

3.5MM AUDIO OUT

1

3.5MM AUDIO IN

1

CONTROL (RS232)

1

HDMI IN

3

VGA IN

1

VGA OUT

1

COMPOSITE RCA VIDEO IN

1

MINI USB

1

RCA AUDIO IN (L/R)

1

RCA AUDIO OUT

1

3D VESA

1

HDBT

1

AUDIO

INTERNAL SPEAKERS

5W (x2)

POWER

VOLTAGE

100-240V+/- 10%, 50/60Hz AC

CONSUMPTION (TYPICAL)

430W

STAND-BY

<0.5W

CONTROLS

PHYSICAL CONTROLS

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

ON SCREEN DISPLAY

Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

OPERATING CONDITIONS

TEMPERATURE

32-104º F (0 - 40º C)

HUMIDITY (NON-CONDENSING)

0-90%

IP CODE

IP6X

ADDITIONAL HARDWARE

KENSINGTON LOCK SLOT

1

WEIGHT (IMPERIAL)

NET (LBS)

24.3

GROSS (LBS)

30.0

WEIGHT (METRIC)

NET (KG)

11.0

GROSS (KG)

13.6

DIMENSIONS (IMPERIAL) (WXHXD)

PACKAGING (IN.)

22.0 x 11.9 x 18.5

PHYSICAL (IN.)

14.2 x 6.3 x 17.3

DIMENSIONS (METRIC) (WXHXD)

PACKAGING (MM)

559.0 x 301.0 x 469.0

PHYSICAL (MM)

360.0 x 161.0 x 440.0

GENERAL

AV CONTROL

AMX Certified, ATEN Certified, Crestron Certified

REGULATIONS

FCC, UL/CUL, ROHS

PACKAGE CONTENTS

LS800WU projector, power cable, VGA cable, remote control, Quick Start Guide

WARRANTY

Five-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).

RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.

DIMENSIONS

14.2 x 6.3 x 17.3 in / 360.0 x 161.0 x 440.0 mm
