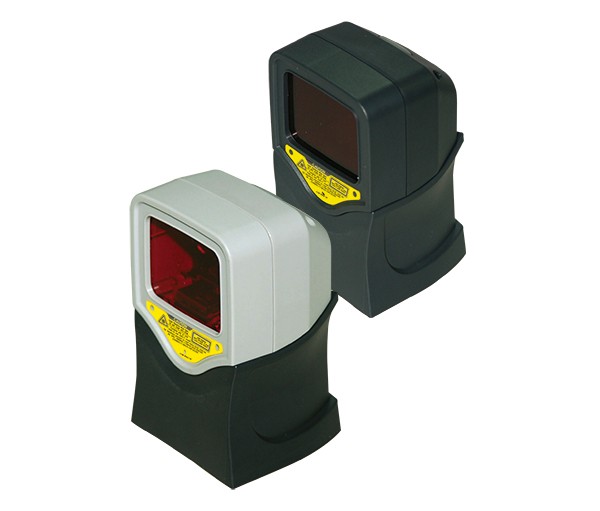

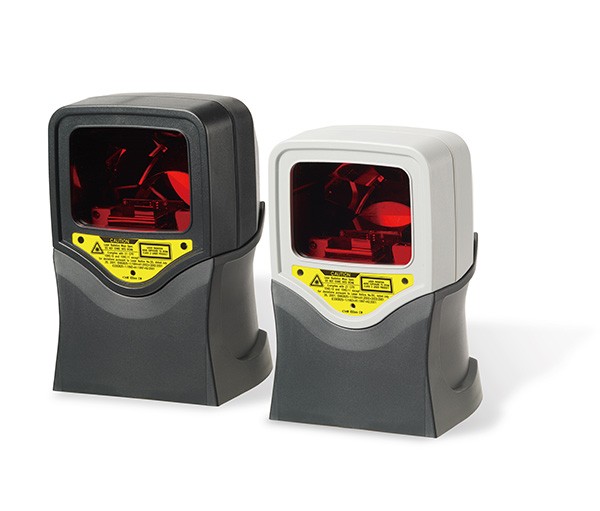

Zebex Z-6010-UB Barcode Scanner

● 1D Barcode Scan ● 1, 400 Scans Per Sec ● Two-Color LED (Blue & Red).\\r\\nCompact Omni directional Laser Scanner

Code

: Z-6010-UB

Manufacturer

Availability

: In Stock

Rs. 27500 Rs. 30500
Qty :

Function

● 1D Barcode Scan ● 1, 400 Scans Per Sec ● Two-Color LED (Blue & Red)

Light Source

650 nm visible laser diode (VLD)

Microprocessor

32 bit

Depth of Field

5 mil: 30 – 90 mm
7.5 mil: 30 – 170 mm
10 mil: 0 – 180 mm
13 mil: 0 – 210 mm
20 mil: 0 – 280 mm

Scan Rate

1, 400 scans per second (omnidirectional); 70 scans per second (single-line)

Print Contrast

30% @ UPC/EAN 100%

Indicator

Two-color LED (blue & red)

Beeper Operation

Beeper tone & volume

System Interface

Keyboard, RS-232, HID USB, USB Virtual COM, wand

Dimensions

110.9 × 65.8 × 70.0 mm (on fixed stand)

122.2~253.0 × 120.3~163.3 × 74.0 mm (on optional cradle)

Cable

Standard 2M straight

Input Voltage

5 VDC ±10%

Operating Current

200 mA typical

EMC

CE & FCC DOC compliance, VCCI, BSMI

Operating Temperature

0°C – 40°C (32°F – 104°F)

Storage Temperature

-20°C – 60°C (-4°F – 140°F)

Humidity

5% – 95% RH (no dewing allowed)

Light Level

Up to 4, 500 Lux (fluorescence)

Drop Durability

Designed to withstand 1.5M drops

1D Barcode

No

Country of Origin

Taiwan

Made in

China
