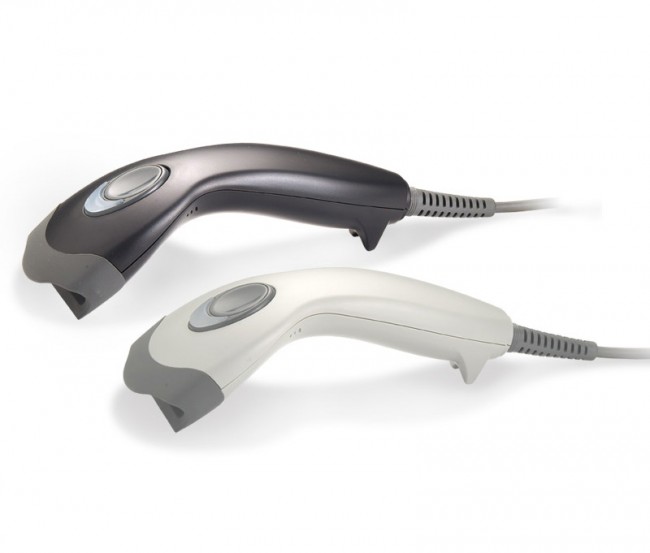

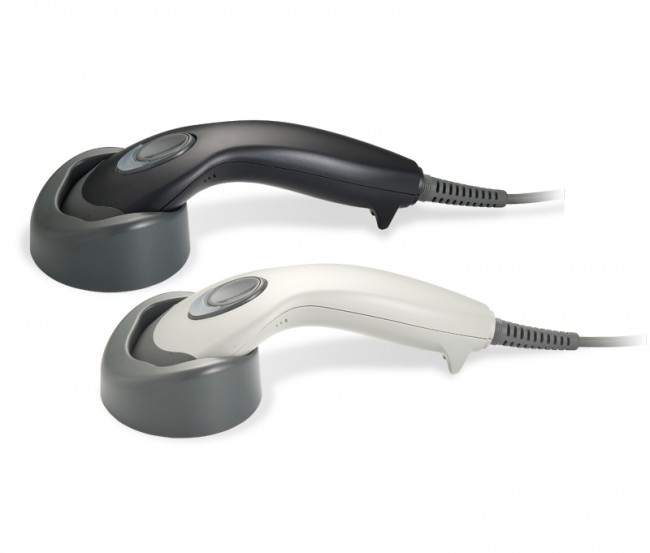

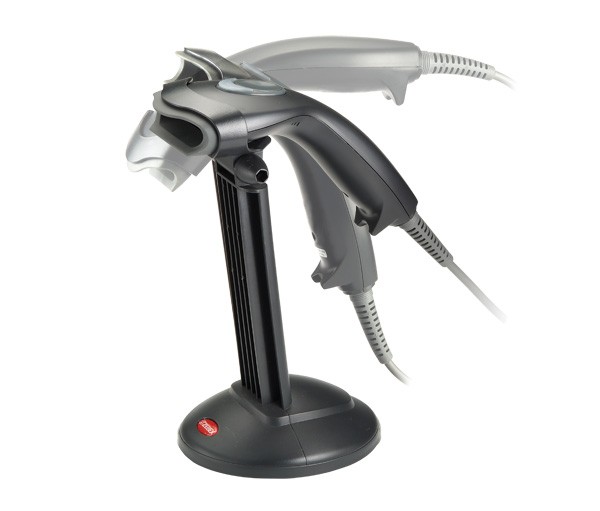

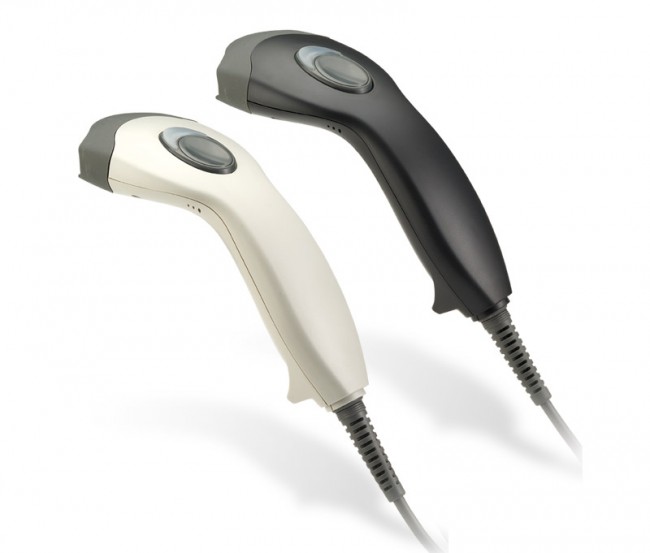

Zebex Z-3100-UB Barcode Scanner

Function

● 1D Barcode Scan ● 330 scans per sec ● Programmable tone

Light Source

617 nm visible red LED

Optical System

Linear CCD array

Microprocessor

32 bit

Depth of Field

4 mil: 0 – 60 mm
5 mil: 0 – 100 mm
7.5 mil: 0 – 140 mm
10 mil: 0 – 180 mm
13 mil: 0 – 300 mm
20 mil: 0 – 350 mm

Scan Rate

330 scans per second

Print Contrast

Min. 30% @ UPC/EAN 100%

Indicator

Blue LED

Beeper Operation

Programmable tone & beep time

System Interface

Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

Dimensions

152.3 × 64.4 × 104.9 mm (device only)

Cable

Standard 2M straight

Input Voltage

5 VDC ±5%

Operating Current

110 mA typical

EMC

CE & FCC DOC compliance, VCCI, BSMI

Operating Temperature

0°C – 50°C (32°F – 122°F)

Storage Temperature

-20°C – 60°C (-4°F – 140°F)

Humidity

5% – 95% RH (non-condensing)

Light Level

0-100, 000 Lux

Drop Durability

Designed to withstand 1.5M drops

1D Barcode

UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite
