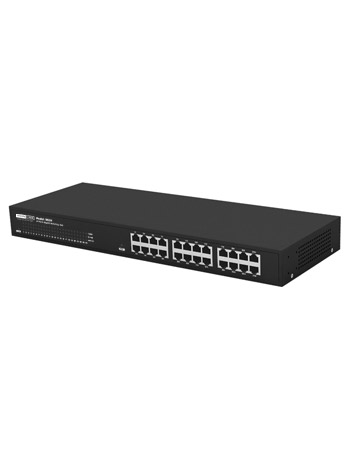

Totolink SG24 24-Port Gigabit Switch

SG24 is a 24-port unmanagedswitch. It is smart hgh performance gigabit switch that provides an ideal solution for workgroup or department Gigabit application. With 24 10/100/1000Base-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode. Also it support easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount.



The superior performance switch, which complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, provides 24 10/100/1000Mbps auto-negotiation RJ-45 ports with LED indicators to monitor link status and activity. Auto MDI/MDI-X crossover on all ports helps to figure out if the link needs a straight-through or cross-over connection automatically. Besides, these ports detect the network speed and auto-negotiate (either 10, 100, or 1000 Mbps) to provide maximum speed possible for each device connected to your network

You can add up to twenty-three devices with a simple Ethernet cable without configuration and every port can deliver gigabit speed for better network capacity. It can enormously increase the speed of your network server with fast Ethernet connectivity. Just plug and play, it is convenient for expanding your wired home network to more device.



The SG24 can excellently expand your network with less powe and provide a longer product life. While there's no link, it will automatically power down ports so that reduce power waste. What's more, it can also detect connected cable lengths, and adjusts power consumption according to the link status.





BRAND TOTO LINK

MODEL SG24

COLOR Black

STANDARDS IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

INTERFACE 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

LED Power, Link/Activity

MAC ADDRESS LEARNING Auto-learning, auto update

MAC ADDRESS TABLE 8k

NETWORK MEDIA 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)

EIA/TIA-568 100Ω STP (100m max.)

100Base-Tx: UTP Cat 5, 5e cable (100m, max.)

EIA/TIA-568 100Ω STP (100m max.)

1000Base-T: UTP Cat 5, 5e cable (100m, max.)

BACKUP BANDWIDTH 48Gbps

TRANSMISSION METHOD Store-and-forward

FRAME FILTERING 10Mbps: 14,880pps

1000Mbps: 1,488,000pps

POWER SUPPLY 100V~240VAC, 50/60Hz

ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

PRODUCT DIMENSIONS 441.5 x 207.4 x 43.8 mm

WEIGHT 1.5 kg

SALES PACKAGE

IN THE BOX Mai Unit

User Manual

Warranty Card

WEIGHT 2.1000

WARRANTY

WARRANTY PERIOD 1 Year Manufacturer Warranty
