Advanced Features:
Supports Port mirroring, Bandwidth Control, VLAN, Trunk, QOS, MAC Address Filter, IGMP and Stride VLAN
Plug and Play:
Supports Auto-Negotiation RJ45 ports (Auto MDI/ MDIX)
Store-and-Forward switching method
Eliminates bad data packets from the network
Rack Mountable Design
Robust metal frame, can be placed on a desktop and or mounted on a 19” rack mount
Excellent Performance
Supports Full/ Half duplex transfer mode for 10/100Mbps
Specifications
Number of Ports
16 x 10/100Mbps Auto MDI/MDIX, Auto Negotiation ports
Cable Type
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
LED Indicator
10/100M: Link/Act (Green)
Other: Power (Green)
Switching Capacity
3.2G
MAC Address List
4K
Frame Filtering & Forward Rate
10Mbps: 14880PPS; 100Mbps: 148800PPS
Power Supply
Input: 100-240VAC 50-60Hz 0.3A
Environment
Operating Temperature: 0 °C ~ 40°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% , non-condensing
Storage Humidity: 5% ~ 90% , non-condensing
Dimensions
440 x 140 x 44mm
Weight: 1.37kg
Package Content Included

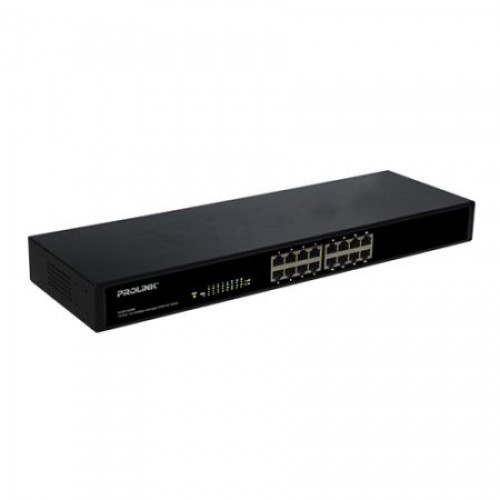

1 x PROLiNK PCSE1650M 16-Port 10/100Mbps Managed Ethernet Switch
1 x Power Cord
2 x Rack-mount Bracket
8 x Screw
4 x Rubber Feet
1 x User Manual
