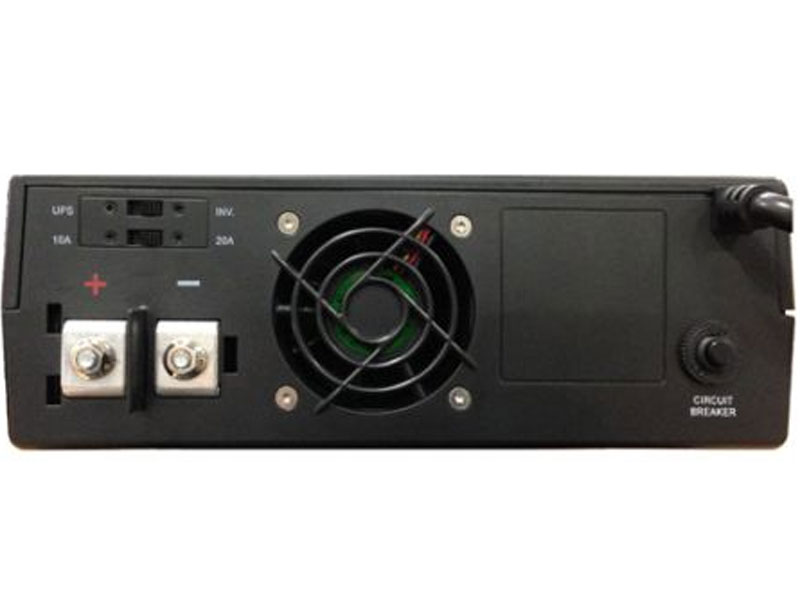

Prolink Inverter 2400VA 24V (IPS2400)

Overload and short circuit protection, auto restart while AC is recovering, LCD and LED indicator

Code

: IPS2400

Manufacturer

Availability

: In Stock

Rs. 25000 Rs. 28800
Qty :

 Features

· Simulated sine wave inverter

· 10A or 20A charging current

· LCD and LED indicators

· Overload and short circuit protection

· Auto restart while AC is recovering

Specifications:

Capacity 2400VA
Input
Nominal Voltage 220/ 230/ 240VAC
Voltage Range
Narrow Range 170 – 280 VAC (UPS mode)
Wide Range 90 - 280VAC
Output
Nominal Voltage 230VAC
Output Voltage Regulation (Battery Mode)+10%/ -18%
Frequency 50Hz or 60Hz
Frequency Regulation +/-0.1 Hz (Bat. Mode)
Transfer Time 10 - 20ms Typical, 40ms (max)
Waveform Simulated Sinewave
Battery
Charger Current 10Amp / 20Amp (Selectable)
DC Voltage 24V
Overcharge Protect 60V
Indication
LED Display Fault – Red Lighting
Battery Mode - Yellow
Low Battery – Yellow flashing
Shutdown Mode – Yellow flashing
Charging Mode - Green flashing
Overload - Red flashing
LCD Display Input Voltage, Output Voltage, Load level, Battery level, Fault alarm
Alarm
Sounding Overload - Sounding every 0.5 second
Low Battery - Sounding every 2 seconds
Overcharging Fault – Continuously sounding
Efficiency
AC to AC >95%
DC to AC >80%
Physical
Dimension (mm) D x W × H 293 x 231.5 x 82.5
Net Weight (kgs) 2.35
Environment
Humidity 0~95% Relative Humidity. 0~40°C
Noise Level Less than 50dBA
