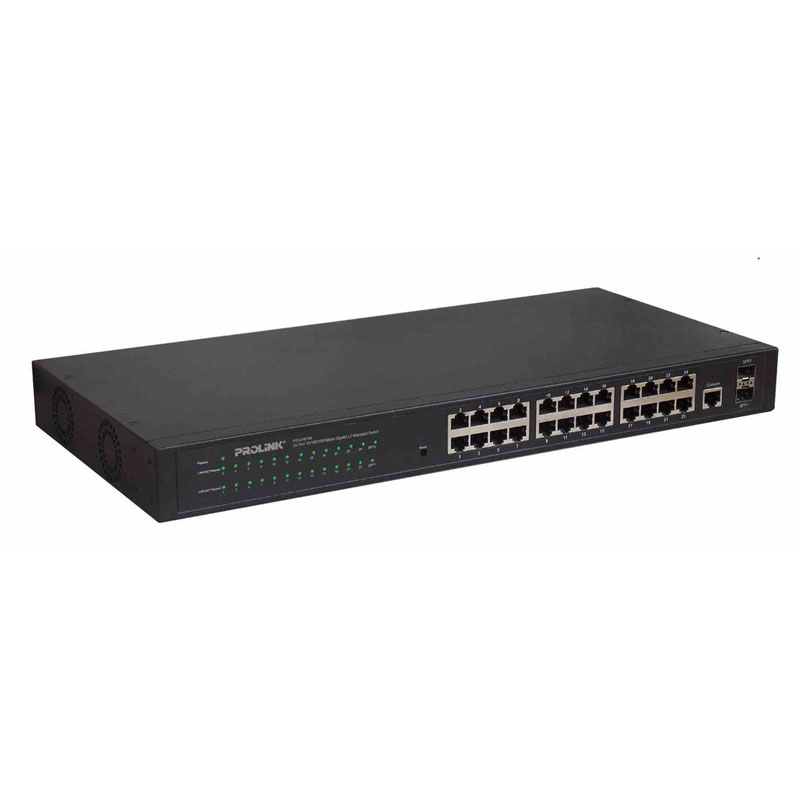

Prolink 24-port Gigabit L2 Managed Switch

Experience high speed with prolink

Code

: PSG2401M

Manufacturer

Availability

: Out of Stock

Rs. 19900
Qty :



TECHNICAL SPECIFICATIONS

StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Number of Ports24 x 10/100/1000Mbps Auto Negotiation ports
Cable Type

10Base-T:
UTP category 3,4,5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

100Base-T:
UTP category 5,5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000Base-T:
UTP category 5e,6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

LED Indicator

Link/Act: Green; 1000M: Green

Power (Green)

Switching Capacity

Up to 48G

MAC Address List

Automatically learning, automatically update 8K table

Frame Filtering & Forward Rate

10Mbps: 14880pps; 100Mbps: 148800ppd; 1000Mbps: 1488000pps

Power SupplyInput: 100-240VAC 50-60Hz
Power Consumption

15W (Max)

DIMENSION & WEIGHT

Dimension440 x 220 x 44mm (L x W x H)  (19” metal case)
Weight-

PACKAGE CONTENT

1 x PROLiNK PSG2402

1 x Power Cord

2 x Rack-mount Bracket

8 x Screw

4 x Rubber Feet

1 x Quick Installation Guide (QIG)
