Specifications
| Details | |
|---|---|

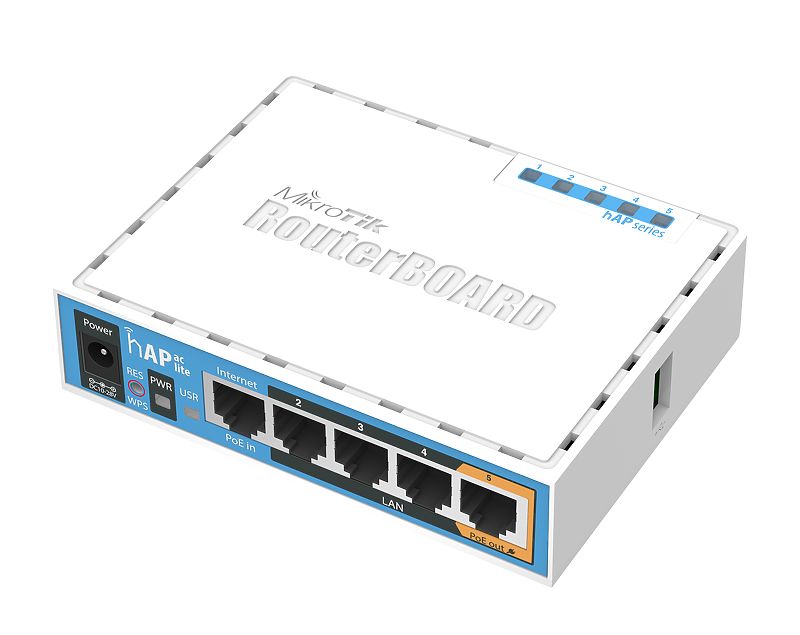

| Product code | RB952Ui-5ac2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
Specifications
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $49.95 |
Â
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 12-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 8 W |
Â
Wireless
| Details | |
|---|---|
| AC speed | AC750 |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
Â
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Â
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Â
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Â
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -93 |
| 54MBit/s | 20 | -75 |
| MCS0 | 23 | -93 |
| MCS7 | 19 | -71 |
| MCS9 | 16 | -63 |
Â
Â
Included parts :Â 24V 1.2A power adapter
related products
P-tech 16 port PoE Switch
Rs. 22000

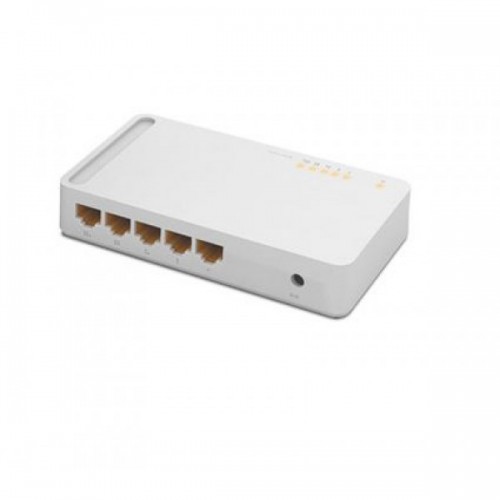

Totolink S505 5-Port 10/100Mbps Desktop Switch
Rs. 1135
Rs. 1400

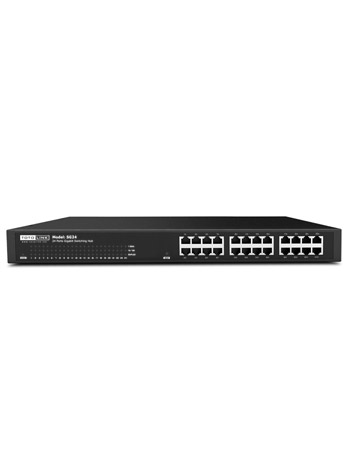

Totolink SG24 24-Port Gigabit Switch
Rs. 17680
Rs. 20800
TOTOLINK 8 Port Ethernet Switch
Rs. 1450
ONV-H1064P POE SWITCH(4+1=5 Port)
Rs. 6500
ONV-H1108PL POE SWITCH
Rs. 10000
ONV-H1016PL POE SWITCH
Rs. 23000
ONV-POE33016PFB PoE Switch
Rs. 32000
Cisco SG350-28 28-Port Managed Switch
Rs. 50000
CISCO SF300 24 PORT Managed Switch
Rs. 25990
Cisco SF95-24 Port Managed Switch
Rs. 12500
Prolink ADSL Splitter
Rs. 90
Prolink 24-port Gigabit Switch PSG2402
Rs. 15800
Rs. 18000
Prolink 8-Port Gigabit PoE Ethernet Switch(PSG801P)
Rs. 10800
Rs. 16200
Prolink 24-Port 10/100 Ethernet Switch(PSE2410M)
Rs. 4200
Rs. 5000
P-tech POE4C2UN PoE Switch
Rs. 4500
P-tech 8 port PoE Switch
Rs. 11500
8 Port desktop switch DG5108GC
Rs. 3000

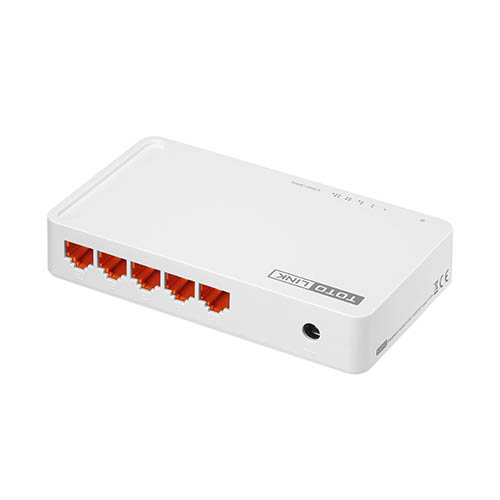

Totolink S-505G Gigabit Ethernet Switch
