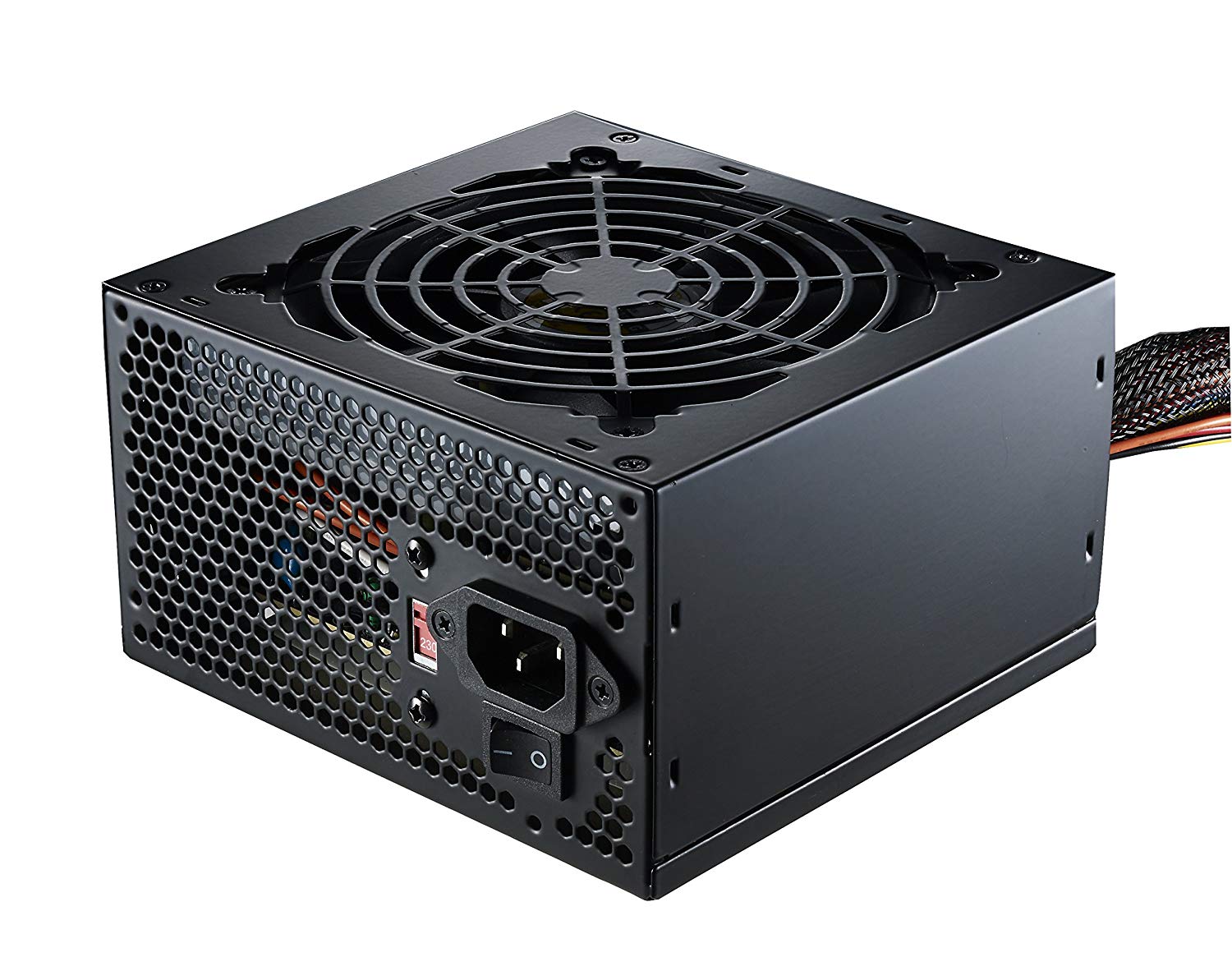

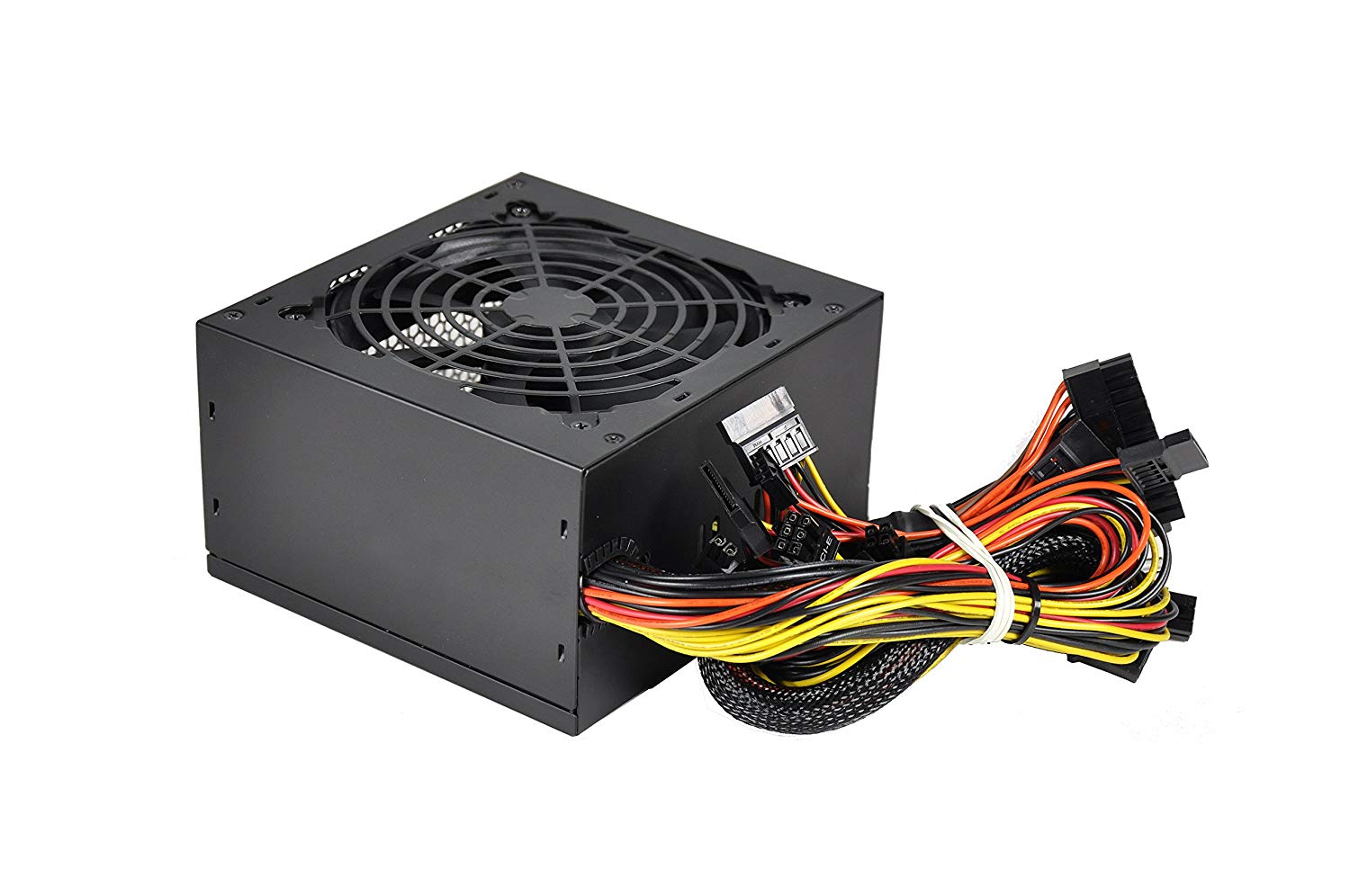

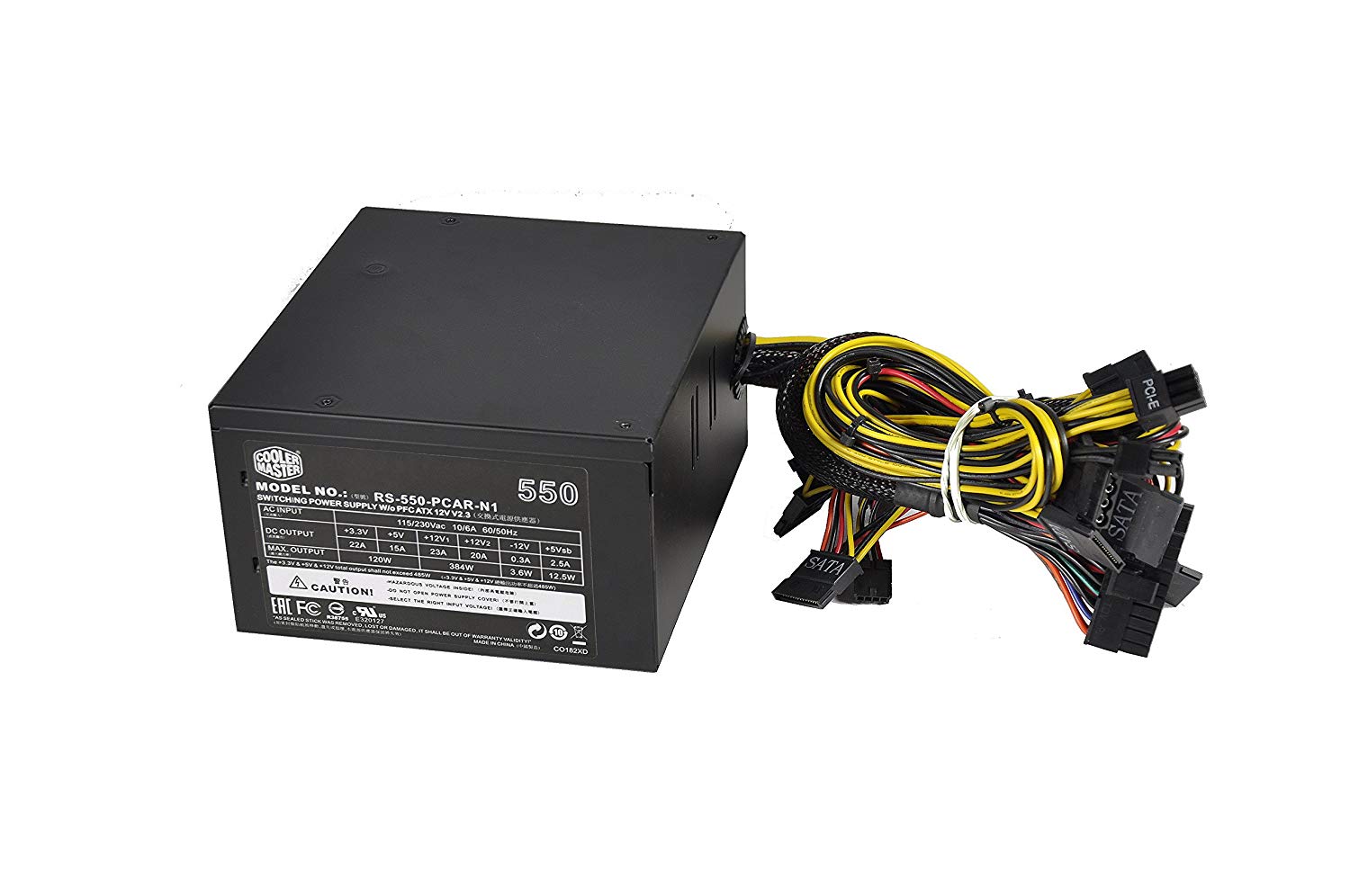

Master Watt Elite 550W

A solid choice for the everyday PC user.

Code

: 550w PSU

Manufacturer

Availability

: In Stock

Rs. 10000
Qty :

SPECIFICATONS

PRODUCT NAME:Elite V3 550W
MODEL:MPW-5501-ACAAN
ATX VERSION:ATX 12V V2.31
PFC:Active PFC
INPUT VOLTAGE:90-264Vac (Operation), 100-240Vac (Normal)
INPUT CURRENT:8-4A
INPUT FREQUENCY:50-60Hz
DIMENSIONS (L X W X H):150 x 140 x 86 mm
FAN TYPE:12cm Sleeve Fan
POWER GOOD SIGNAL:100-500ms
HOLD UP TIME:>12ms at 100% full load
EFFICIENCY:75% @ Typical Load
MTBF:>100,000 Hours
PROTECTIONS:OVP / OPP / OTP / SCP
REGULATORY:CE, BSMI, FCC, TUV-SUD, UL/CUL, EAC, RCM
MB 20+4 PIN CONNECTORS:1
CPU 12V 4+4 PIN CONNECTORS:1
SATA CONNECTORS:6
PERIPHERAL 4-PIN CONNECTORS:3
FDD CABLE 4-PIN CONNECTORS:1
PCI-E 6+2 PIN CONNECTORS:2
WATTAGE:500 to 750W
SERIE:Elite Series
