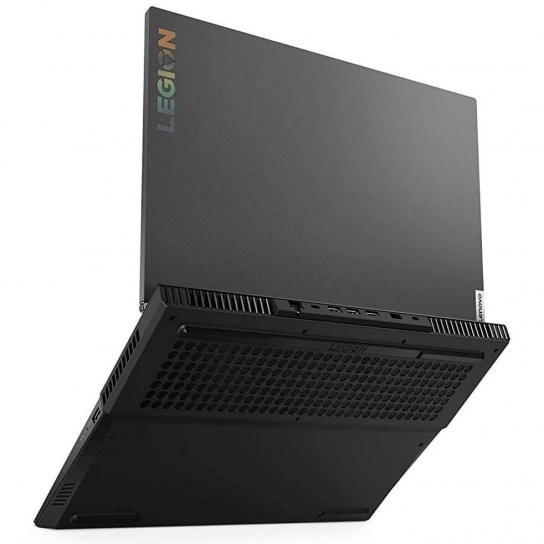

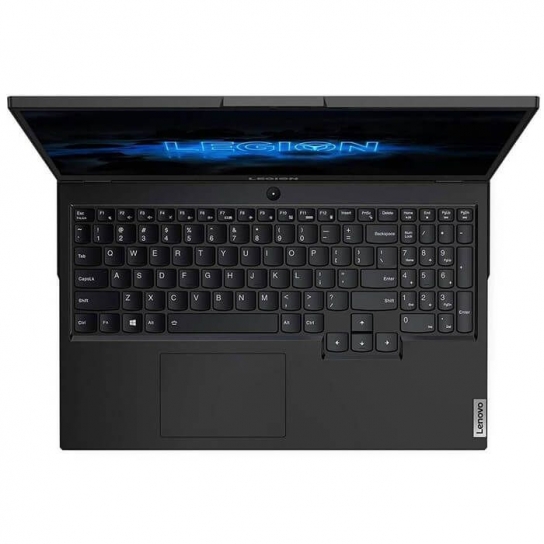

Lenovo Legion 5i i7 10th Gen / GTX 1660Ti / 15.6'' 144Hz Display / 16GB RAM / 512GB SSD / RGB Keyboard

Processor

Intel Core i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)

Graphics

NVIDIA GeForce GTX 1660 Ti 6GB GDDR6

Chipset

Intel HM470

Memory

2x 8GB SO-DIMM DDR4-2933

Memory Slots

Two DDR4 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR4-2933 offering

Storage

512GB SSD M.2 2280 PCIe 3.0x4 NVMe + Empty M.2 2280 PCIe 3.0x4 SSD Slot

Storage Support

Dual SSD mode: up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos for gaming, HARMAN-branded

Camera

720p with Privacy Shutter

Microphone

2x, Array

Battery

Integrated 80Wh

Max Battery Life

MobileMark 2018: 7.7 hr (80Wh)

Power Adapter

230W Slim Tip (3-pin)

DESIGN

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 144Hz, 100% sRGB, Dolby Vision, DC dimmer

Touchscreen

None

Keyboard

4-Zone RGB Backlit, English

Case Color

Phantom Black

Surface Treatment

Painting

Case Material

PC + ABS (Top), PC + ABS (Bottom)

Dimensions (WxDxH)

363.06 x 259.61 x 23.57-26.1 mm (14.3 x 10.22 x 0.93-1.03 inches)

Weight

2.46 kg (5.42 lbs)

SOFTWARE

Operating System

Windows 10 Home 64, Traditional Chinese / Simplified Chinese / English

Bundled Software

Office Trial

CONNECTIVITY

Ethernet

100/1000M

WLAN + Bluetooth

11ax, 2x2 + BT5.0

Standard Ports

• 3x USB 3.2 Gen 1
• 1x Power connector
• 1x Ethernet (RJ-45)
• 1x USB 3.2 Gen 1 (Always On)
• 1x Headphone / microphone combo jack (3.5mm)
• 1x HDMI 2.0
• 1x USB-C 3.2 Gen 1 (support data transfer and DisplayPort 1.2)

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0

Fingerprint Reader

None

Physical Locks

Kensington Security Slot

Other Security

Camera privacy shutter

SERVICE

Base Warranty

1-year, Depot

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 3
• RoHS compliant
