AVERMEDIA Live Gamer GC513 External 4K Streaming capture card device

Description:

Gaming just got this much better. The Live Gamer Portable 2 Plus builds on its predecessor the LGP2, keeping great flexibility with three integrated modes, multiple audio inputs, and audio mixer control, while adding a whole new pass-through technology to support Ultra HD 4K resolution at a buttery 60 frames per second. Don’t sacrifice the 4K experience just to be able to record your gameplays. Enjoy 100% lag-less 4Kp60 video with LGP 2 Plus integrated pass-through feature and still record amazing game plays at Full HD 60 Fps. Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i.

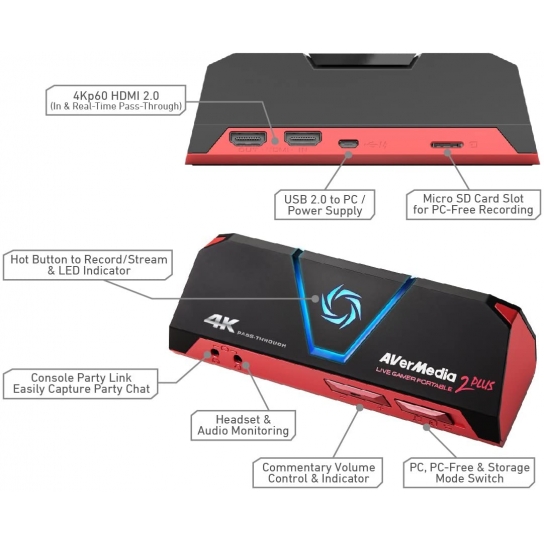

• Interface:USB 2.0 (USB Micro)
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic pass-through)*1
• Audio Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through from controller, Mic input)*1
• Max Pass-Through Resolutions:4Kp60 / 1080p60
• Max Record Resolutions:1080p60
• Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i
• Operation Modes:PC mode, PC-free mode, Card reader mode
• Record Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware encoding
• Dimension (W x D x H):147 x 57 x 47 mm (5.8 x 2.2 x 1.8in)
• Weight:185.5g (6.54 oz)
Notes:
1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals
2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included.
3. Micro SD maximum capacity support: 128GB
4. Micro SD Supported formats: FAT32 format / exFAT format
- When using the "FAT32 format" microSD card,
Due to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes).
- Continuous recording is possible when using "exFAT format" microSD card

System Requirements(For dedicated streaming PC)

Operating sytem: Windows® 10 / 8.1 / 7 / Mac OS X (Support UVC Protocol)
For 1080p60
Desktop:
- Intel® Core™ i5 CPU i5-3330 or comparable (i7 recommended)
- NVIDIA® GTX 650 / AMD Radeon™ R7 250X or above are recommended
- 4GB RAM
Laptop:
- Intel® Core™ i7-4810MQ
- NVIDIA® GeForce® GTX 870M
- 4 GB RAM (8 GB recommended)

Operating system: Mac OS X (Support UVC Protocol)
For 1080p60
Desktop:
- 2.9GHz quad-core Intel Core i5 processor
- NVIDIA GeForce GT 750M graphics processor with 1GB of GDDR5 memory
- 16GB of 1600MHz DDR3L onboard memory
Laptop:
- 2.5GHz quad-core Intel Core i7 processor
- NVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics switching
- 16GB of 1600MHz DDR3L onboard memory
