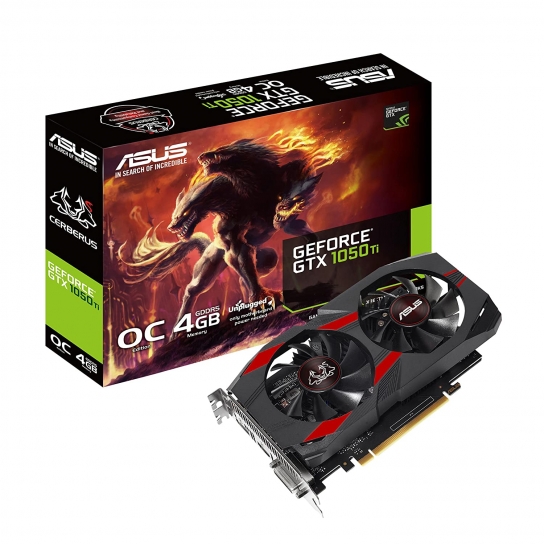

Based on NVIDIA's Pascal architecture, the ASUS Cerberus GeForce GTX 1050 Ti OC Edition Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the Maxwell architecture.
The front panel of the card features a variety of outputs including DisplayPort 1.4 output, one HDMI 2.0b output, and one DVI-D Dual-Link output. The GTX 1050 Ti is not just about high-resolution gaming; Computationally intensive programs can utilize the GPU's 768 cores to accelerate tasks using CUDA or other APIs.

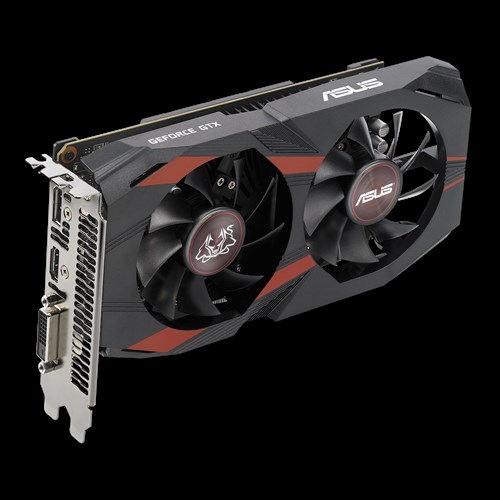

This card features dual fans. The twin optimized fans transport heat away from the GPU. The fans are also rated IP5X for dust resistance.
Specifications:
GPU
| GPU Model | NVIDIA GeForce GTX 1050 Ti |
| Stream Processors | 768 CUDA Cores |
| Boost Clock Speed | Gaming Mode: 1455 MHz OC Mode: 1480 MHz |
| Base Clock Speed | Gaming Mode: 1341 MHz OC Mode: 1366 MHz |
| Interface | PCI Express 3.0 x16 |
| Supported APIs | DirectX: 12 OpenGL: 4.5 CUDA Vulkan |
Memory
| Memory Speed | 7 Gb/s |
| Memory Configuration | 4 GB |
| Memory Interface | GDDR5 |
| Memory Interface Width | 128-Bit |
| Memory Bandwidth | 112 GB/s |
Display Support
| Display Connectors | 1 x HDMI 2.0b 1 x DisplayPort 1.4 1 x DVI-D DL |
| Maximum Digital Resolution | 7680 x 4320 @ 60 Hz |
Power Requirements
| Recommended System Power Requirement | 300 W |
Dimensions
| Height | 4.53" / 115.00 mm |
| Length | 7.99" / 203.00 mm |
| Width | Dual-Slot |
General
| Cooler Type | Open Fansink |
| Lighting | None |
